AO-K-1202 1202 nm LD Pumped All-Solid-State Q-Switched Laser

$1,000,000.00

Output power

Quantity

Description: All solid state Q-switched laser at 1202 nm with ultra compact design and easy operation.

Applications: micro-electronics, metrology and material processing, laser medical treatment, scientific experiment, etc.

Model #: AO-K-1202

Wavelength (nm)	1202±2
Operating Mode	Actively
Average Power (mW)	10-700
Average Power Stability (rms, 4 hours ± 3°C)	<5%, <3%
Rep. Rate	10 kHz
Pulse Duration (ns)	<25
Single Pulse Energy (µJ)	70
Peak Power (kW)	2.8
Beam Diameter at the Aperture (1/e2, mm)	<3
Beam Divergence, Full Angle (mrad)	<2

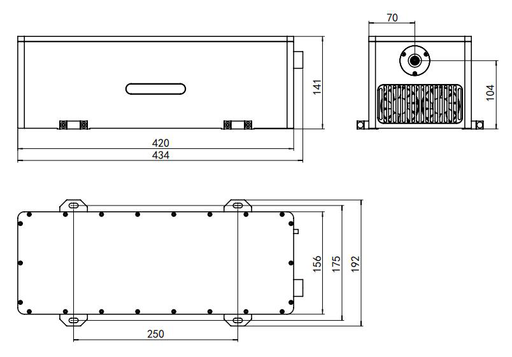

Beam Height from Base Plate (mm)	104
Warm-up Time (minutes)	<10
Operating Temperature (℃)	10-35
Power Supply (100-240 VAC)	PSU-AOM (3U)
Expected Lifetime (hours)	>10000

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Please request a quotation for a real price and lead time.

1202 nm
