315 nm LD Pumped All-Solid-Sate Passively Q-switched Pulsed Laser MPL-FN-315

$1,000,000.00

Output power

Quantity

Description: All solid state passively Q-switched laser features ultra compact, long lifetime, cost-effectiveness and easy operating.

Applications: UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment

Model #: MPL-FN-315

Model	MPL-FN-315
Wavelength	315 nm
Operation Mode	Pulsed (Q-switched)
Average Power	1-2 mW
Single Pulse Energy	1-2 µJ
Pulse Width	~1.6 ns
Peak Power	0.6-1.3 kW
Repetition Rate	10Hz-1kHz (Int/Ext)
Power Stability	<5%, <3%, <2%
Transverse Mode	TEM00
M2	<2.0
Beam Diameter at the Aperture	~1.5 mm
Beam Divergence, Full Angle	<1.5 mrad
Warm-Up Time	< 5 min.

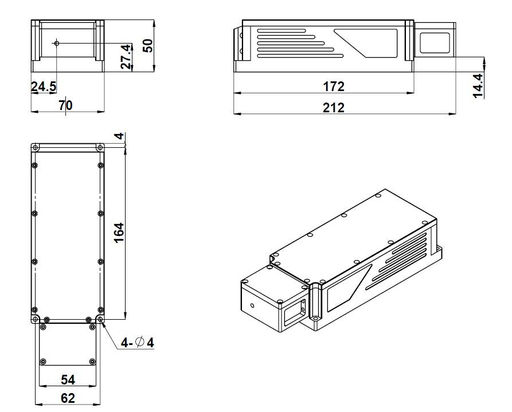

Beam Height from Base Plate	27.4 mm
Operating Temperature	10 ~ 35 ℃
Power Supply	PSU-SR
Expected Lifetime	>10000 (hours)

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Please request a quotation for a real price and lead time.

315 nm
