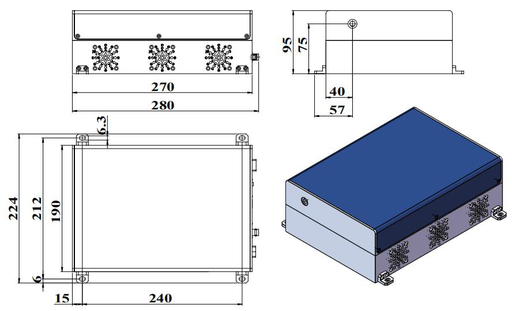

FL-535-Pico Laser Head (Driver Integrated)

FL-535-Pico 535 nm Picosecond All-Fiber Pulsed Laser

Description: Picosecond all fiber pulsed laser at 535nm is made features of high output power stability, good beam profile, ultra compact, long lifetime, cost-effectiveness and easy operating.

Applications: TCSPC, picosecond processing, laser drilling, glass engraving, scientific research

Model #: FL-535-Pico

Model	FL-535-Pico
Wavelength (nm)	535±1
Operating Mode	Pulsed
Average Power (mW)¹	1-100 / 100 mW-1 W
Power Stability (rms, 4 hours ±3°C)	<5%, <3%, <2%
Pulse Duration (ps)²	100-900
M²	<1.5 / <2
Repetition Rate³	100 kHz-20 MHz / 100 kHz-1 MHz
Polarization Ratio (dB)	>15, Horizontal (Vertical optional)
Warm-Up Time (minutes)	<15
Beam Height from Base Plate (mm)	30
Delivery Cable Length (cm)⁴	60
Cooled Method	Air cooled
Operating Temperature (℃)	15-35
Operating Voltage (VDC)	12V/11.5A
Expected Lifetime (hours)	>10000

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Long lifetime
FDA registered
ISO and CE qualified
ROHS complied
Model # FL-535-Pico

Please request a quotation for a real price and lead time.

535 nm

FL-535-Pico 535 nm Picosecond All-Fiber Pulsed Laser
