340 nm LD Pumped All-Solid-State CW UV Laser UV-DP-340-B

$1,000,000.00

Output power

Quantity

Description: All solid state CW mode UV laser features ultra compact, easy operating, high power and stability.

Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment

Model #: UV-DP-340-B

Model	UV-DP-340-B
Wavelength	340 nm
Operation Mode	CW
Average Power	1-1000 mW
Power Stability	<2%, <1%, <0.5%
Transverse Mode	Near TEM00
Beam Diameter at the Aperture	<3.0 mm
Beam Divergence, Full Angle	<3.0 mrad
Warm-Up Time	< 10 min.
Polarization Ratio	>50:1 (>100:1 optional) Vertical (Horizontal optional)

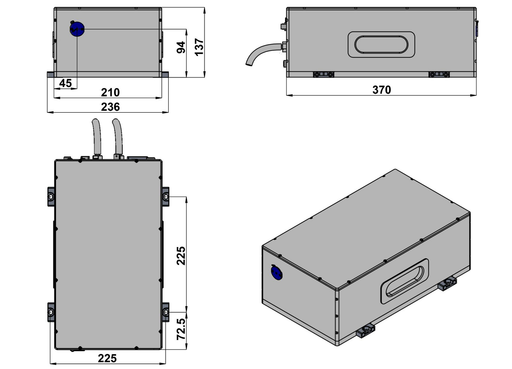

Beam Height from Base Plate	94 mm
Cooling Method	Water cooled (WCH-580)
Operating Temperature	10 ~ 35 ℃
Modulation Option	DC-1kHz; TTL and Analog optional
Operating Voltage	12V/25A
Expected Lifetime	>10000 (hours)

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Please request a quotation for a real price and lead time.

340 nm
