MPL-FN-278-L 278 nm LD Pumped All-Solid-Sate Passively Q-switched Pulsed Laser

Request a Quote

Description: All solid state UV laser features ultra compact, long lifetime, cost-effectiveness and easy operating.

Applications: UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment

Model #: MPL-FN-278-L

Model	MPL-FN-278-L
Wavelength	278 nm
Operation Mode	Pulsed (Q-switched)
Max Average Power	1-5 mW
Single Pulse Energy	~1 µJ
Pulse Width	~35 ns
Peak Power	~0.02 kW
Repetition Rate	4-6 kHz
Power Stability	<5%, <3%
Transverse Mode	Near TEM00
Beam Diameter at the Aperture	~0.8 mm
Beam Divergence, Full Angle	<4 mrad
Polarization Ratio	>50:1, Horizontal (Vertical Optional)
Warm-Up Time	< 5 min.

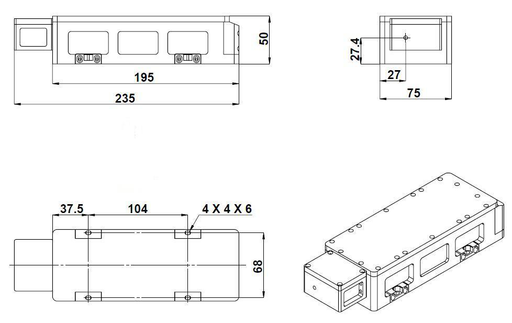

Beam Height from Base Plate	27.4 mm
Operating Temperature	10 ~ 35 ℃
Power Supply (90 - 264 VAC)	PSU-H-FDA
Expected Lifetime	>10000 (hours)

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.
