MIL-W-1834 1834 nm All-Solid-State Infrared Laser

$1,000,000.00

Output power

Quantity

Description: LD pumped all-solid-state 1834 nm infrared laser featuring high power, good beam quality and easy operation.

Applications: material processing (especially plastics), pumping of mid-infrared laser sources, medical procedures such as precise tissue ablation, ophthalmic surgery and dentistry

Model #: MIL-W-1834

Wavelength (nm)	1834±2
Operating Mode	CW
Output Power (mW)	1-1300
Power Stability (rms, 4 hours ± 3°C)	<5%, <3%
Transverse Mode	Near TEM00
M²	<3.0
Beam Divergence, Full Angle (mrad)	<2.0
Beam Diameter at the Aperture (1/e2, mm)	<2.0

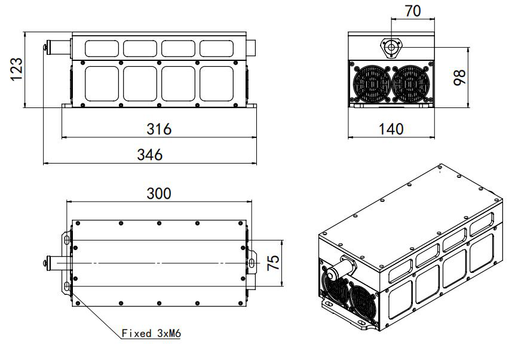

Beam Height from Base Plate (mm)	98
Warm-up Time (minutes)	<10
Cooled Method	Air Cooled
Operating Temperature (°C)	10-35
Power Supply (100-240 VAC)	PSU-W-LED or PSU-W-FDA
TTL/Analog Modulation	TTL or Analog with 1 Hz-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz optional
Expected Lifetime (hours)	>10000

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Long lifetime
FDA registered
ISO and CE qualified
ROHS complied
Model # MIL-W-1834

Please request a quotation for a real price and lead time.

1834 nm

MIL-W-1834 1834 nm All-Solid-State Infrared Laser
