303 nm LD Pumped All-Solid-Sate Acousto-Optic Q-switched Pulsed Laser AO-U-303-DP

Request a Quote

Description: All solid state actively laser has the features of high peak power, high repetition rate and short pulse duration.

Applications: material processing, measure, scientific research

Model #: AO-U-303-DP

Model	AO-U-303-DP
Wavelength	303 nm
Operation Mode	Pulsed (Q-switched)
Average Power	1-3 mW @5kHz
Single Pulse Energy	0.6 µJ @5kHz
Pulse Width	~18 ns @5kHz
Peak Power	~0.1 kW @5kHz
Repetition Rate	1-30 kHz
Power Stability	<5%, <3%
Transverse Mode	Near TEM00
Beam Diameter at the Aperture	<2.0 mm
Beam Divergence, Full Angle	<2.0 mrad
Warm-Up Time	< 10 min.

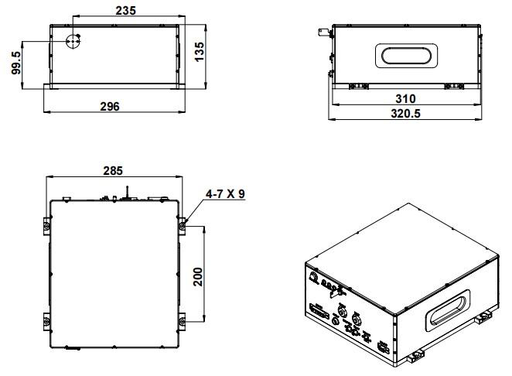

Beam Height from Base Plate	99.5 mm
Operating Temperature	10 ~ 35 ℃
Cooling Method	Water cooled
Power Supply	12V/25A
Expected Lifetime	>10000 (hours)

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.
