MGL-N-558 558 nm LD Pumped All-Solid-State Yellow Green Laser

$1,000,000.00

Output power

Quantity

Description: All solid state 558 nm yellow green laser is made features of ultra compact, long lifetime and easy operating.

Applications: collimation, laser medical treatment, scientific experiment, optical instrument

Model #: MGL-N-558

Model	MGL-N-558
Wavelength (nm)	558±1
Operating Mode	CW
Output Power (mW)¹	1-100
Power Stability (rms, 4 hours ±3°C)	<5%, <3%, (<2% optional)
Transverse Mode	Near TEM00
M²	1.5-3.0
Beam Divergence, Full Angle (mrad)	<1.5
Beam Diameter at the Aperture (1/e², mm)	~4.0
Warm-Up Time (minutes)	<10
Pointing Stability (µrad, over 2 hours after warm-up and ±3°C)	<50
Pointing Stability Over Temperature (µrad/°C)	<20
Polarization Ratio	>50:1 (100:1 optional), Horizontal (Vertical optional)

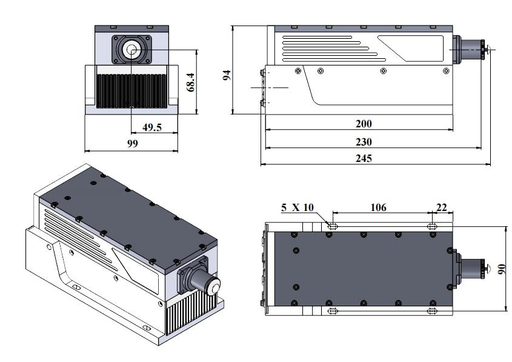

Beam Height from Base Plate (mm)	68.4
Operating Temperature (℃)	10-35
Power Supply (100-240VAC)	PSU-H-FDA/PSU-H-LED/PSU-H-OEM
Modulation Option	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional
Expected Lifetime (hours)	>10000

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Please request a quotation for a real price and lead time.

558 nm
