MIL-W-2600-4480 2600-4480 nm High Stability Mid-Infrared Laser

$1,000,000.00

Output power

Quantity

Description: LD pumped all-solid-state mid-infrared laser covering 2600-4480 nm with CW output power of up to 1000 mW and a wide tuning range. Any wavelength range in the list can be ordered.

Applications: spectroscopy, remote sensing, medical, etc.

Model #: MIL-W-2600-4480

Wavelength (nm)	2600-3700 / 3900 / 4000 / 4100 / 4200 / 4300 / 4400 / 4480
Wavelength Deviation (nm)	±30
Operating Mode	CW
Output Power (mW)	250-1000
Power Stability (rms, 4 hours ± 3°C)	<5%, <3%
Beam Divergence, Full Angle (mrad)	<11
Beam Diameter at the Aperture (1/e2, mm)	<11

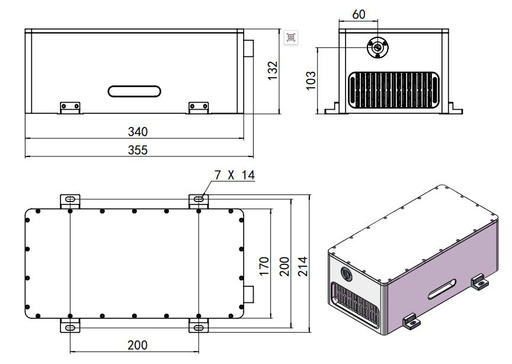

Beam Height from Base Plate (mm)	103
Warm-up Time (minutes)	<10
Cooled Method	Air Cooled
Operating Temperature (°C)	15-35
Power Supply (100-240 VAC)	RAD1PS
Expected Lifetime (hours)	>10000

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Long lifetime
FDA registered
ISO and CE qualified
ROHS complied
Model # MIL-W-2600-4480

Please request a quotation for a real price and lead time.
