MGL-U-571-SF 571 nm LD Pumped All-Solid-State Single Frequency Yellow Laser

Request a Quote

Description: All solid-state CW mode laser is made features of ultra compact, easy operating, high power and stability.

Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment

Model #: MGL-U-571-SF

Model	MGL-U-571-SF
Wavelength (nm)	571±1
Operating Mode	CW
Output Power (mW)¹	1-200
Power Stability (rms, 4 hours ±3°C)	<3%, <2%, (<1% optional @ Water Cooled)
Transverse Mode	TEM00
M²	~3.0
Beam Diameter at the Aperture (1/e², mm)	~3.0
Beam Divergence (mrad)	<3.0
Cooled Method	Air cooled / Water cooled
Warm-Up Time (minutes)	<10

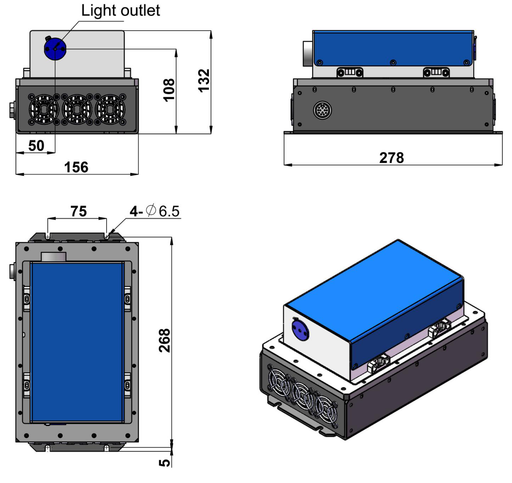

Beam Height from Base Plate (mm)	108 @ Air Cooled / 61.5 @ Water Cooled
Power Supply (100-240VAC)	PSU-SF
Expected Lifetime (hours)	>10000

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Please request a quotation for a real price and lead time.
