720 nm LD Pumped All-Solid-Sate Electric-optic Q-switched Pulsed Laser HPL-720-T

$1,000,000.00

Output power

Quantity

Description: All solid state Q-switched laser has the features of high peak power, high repetition rate, and short pulse duration.

Applications: marking, carving, measure, scientific research

Model #: HPL-720-T

Model	HPL-720-T
Wavelength	720 nm
Operation Mode	Pulsed (Q-switched)
Average Power	4000 mW
Single Pulse Energy	400 µJ
Repetition Rate	1-10 kHz
Pulse Duration	<25 ns
Peak Power	16 kW
Power Stability	<5%, <3%
Beam Divergence, Full Angle	<2 mrad
Beam Diameter at the Aperture	<3 mm
M²	<1.5

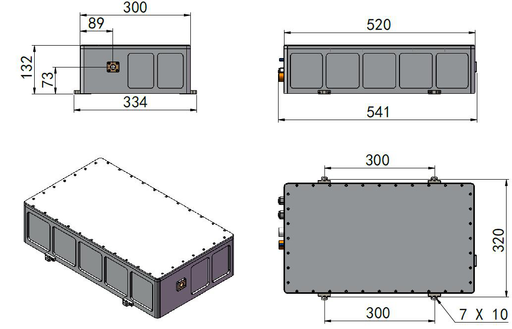

Beam Height from Base Plate	73 mm
Cooling Method	Water cooled
Operating Temperature	15 ~ 35 ℃
Power Supply (220/110VAC)	PSU-AOM (4U)
Expected Lifetime	>10000 hours

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Please request a quotation for a real price and lead time.
