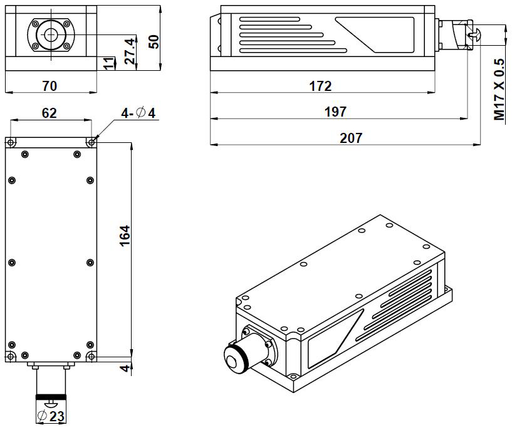

MRL-FN-666 666 nm LD Pumped All-Solid-State Red Laser

$1,000,000.00

Output power

Quantity

Description: All solid-state CW mode laser is made features of ultra compact, easy operating, high power and stability.

Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment

Model #: MRL-FN-666

Model	MRL-FN-666
Wavelength (nm)	666±1
Operating Mode	CW
Output Power (mW)¹	1-200
Power Stability (rms, 4 hours ±3°C)	<2%, <1%, 0.5%
Transverse Mode	TEM00
M²	<1.5
Beam Diameter at the Aperture (1/e², mm)	<1.5
Beam Divergence, Full Angle (mrad)	<1.5
Polarization Ratio	>100:1, Vertical (Horizontal optional)
Warm-Up Time (minutes)	<5
Pointing Stability (µrad, over 2 hours after warm-up and ±3°C)	<50
Pointing Stability Over Temperature (µrad/°C)	<8
Beam Height from Base Plate (mm)	27.4
Operating Temperature (℃)	10-35
Modulation Option	DC-1kHz, 1kHz-10kHz, 10kHz-30kHz optional; TTL and Analog optional
Power Supply (100-240VAC)	PSU-H-FDA/PSU-H-LED/PSU-SR
Expected Lifetime (hours)	>10000

Please refer to the Data Sheet for detailed specifications

If you need a different model number, please feel free to ask for a quotation.

Please request a quotation for a real price and lead time.

666 nm
