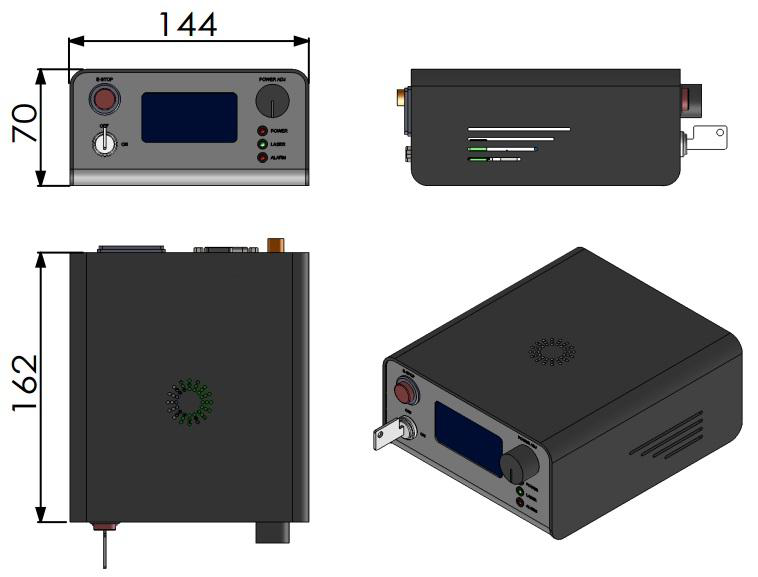

MDL-III-1627DFB-SM 1627 nm Single Mode Fiber Output DFB Diode Laser
$1,000,000.00
Description: DFB (distributed feedback) diode laser at 1627 nm with single mode fiber output, featuring ultra compact design, long lifetime and narrow spectral linewidth.
Applications: gas detection (C2H4), measurement, communication, spectroscopy
Model #: MDL-III-1627DFB-SM
| Central Wavelength (nm) | 1627±3 |
| Operating Mode | CW |
| Output Power After Fiber (mW) | 1-5 |
| Power Stability (rms, over 4 hours) | <3%, <2%, <1%, <0.5% |
| Fiber Type | SM fiber (PM fiber optional) |
| Fiber Core Diameter (µm) | 4-9 |
| Fiber NA | 0.12 |
| Fiber Connector | FC/PC, FC/APC |
| Fiber Length (m) | 1 (other lengths are available on request) |
| Transverse Mode | TEM00 |
| Ellipticity | >0.95 |
| M2 Factor After Fiber | ~1.1 |
| Warm-up Time (minutes) | <5 |
| Operating Temperature (°C) | 10-35 |
| Power Supply | 85-264 VAC: PSU-III-LED/PSU-III-FDA (1 Hz-30 kHz); 100-240 VAC: PSU-A-D (30 kHz-100 kHz) |
| Modulation Optional | TTL on/off, 1 Hz-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz, 30 kHz-100 kHz; and Analog modulation optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-III-1627DFB-SM
Please request a quotation for a real price and lead time.
