MIL-W-1700 1700 nm Fiber Coupled Diode Laser System
$1,000,000.00
Description: Fiber coupled diode laser system at 1700 nm from the MIL-W-1500-1700 series, providing a CW output power of up to 3000 mW.
Applications: remote sensing, communication, spectrum analysis, etc.
Model #: MIL-W-1700
| Wavelength (nm) | 1700 |
| Wavelength Deviation (nm) | ±10 |
| Operating Mode | CW |
| Output Power (mW) | 100-3000 |
| Power Stability (rms, 4 hours ± 3°C) | <5%, <3% |
| Beam Divergence, Full Angle (mrad) | <8 |
| Beam Diameter at the Aperture (1/e2, mm) | <7 |

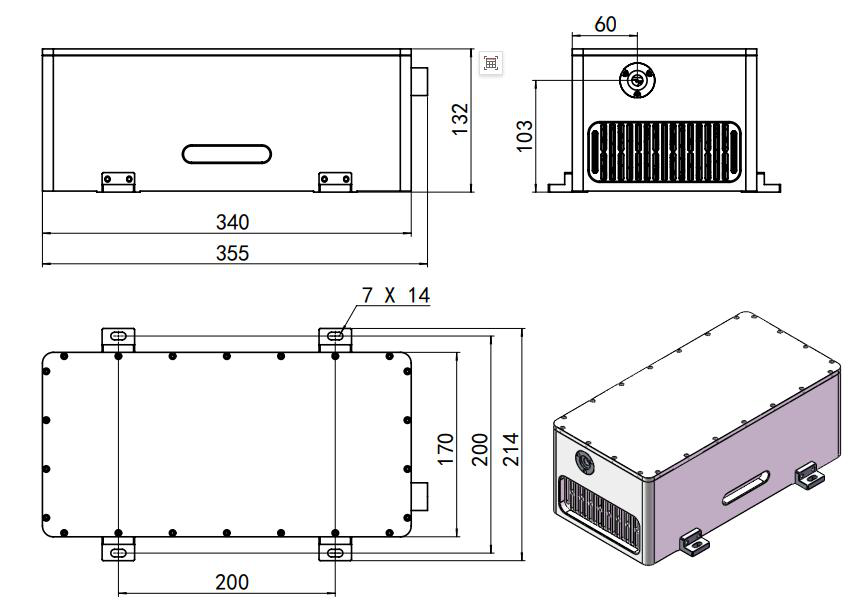

| Beam Height from Base Plate (mm) | 103 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Air Cooled |
| Operating Temperature (°C) | 15-35 |
| Power Supply (100-240 VAC) | RAD1PS |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MIL-W-1700
Please request a quotation for a real price and lead time.
