UltraScan Head
UltraScan Head

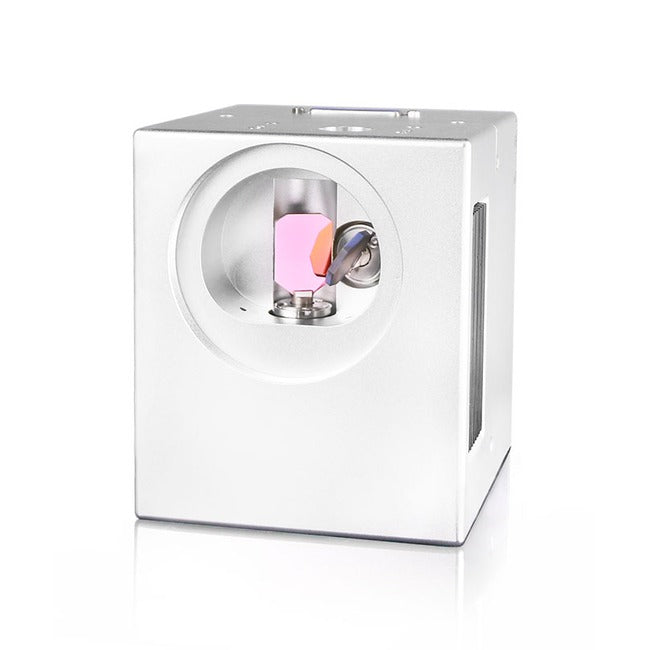

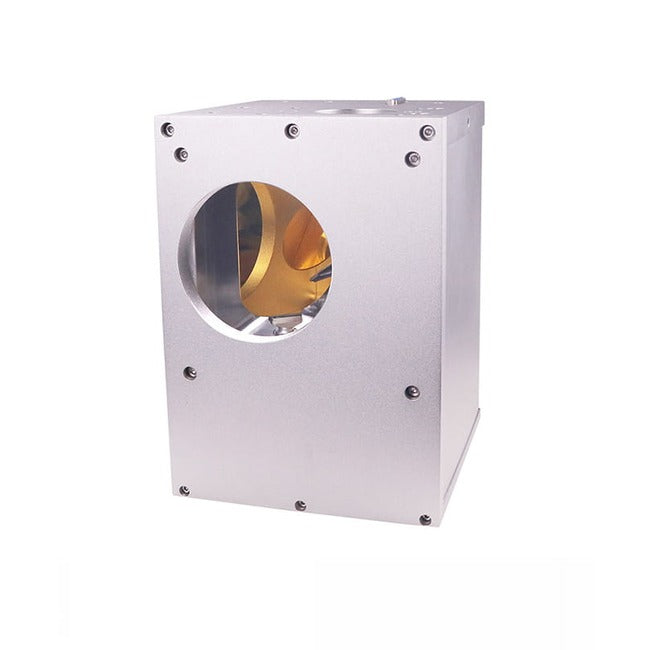

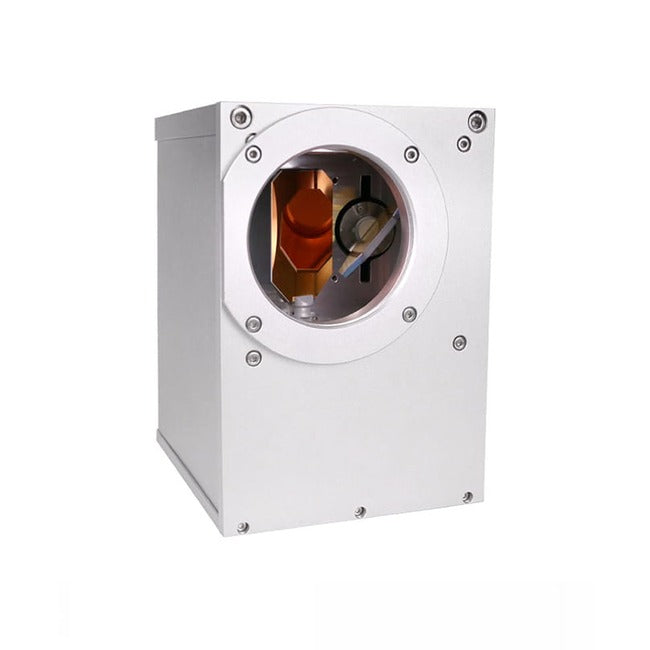

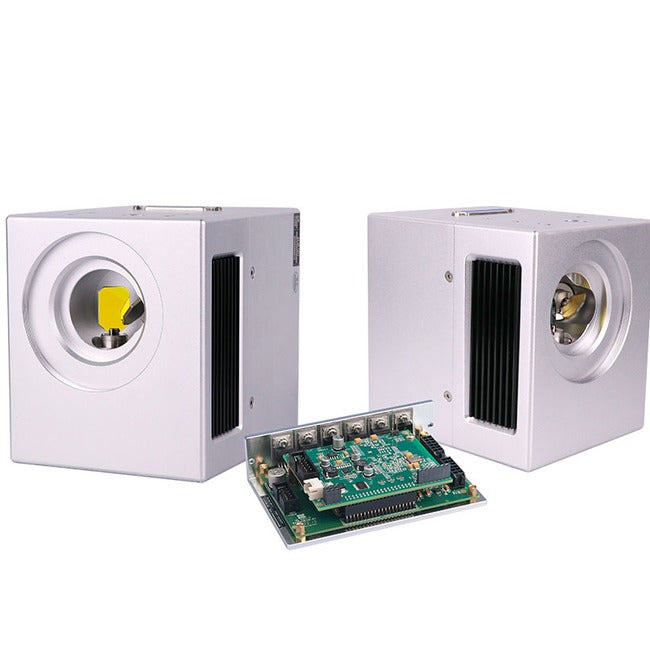

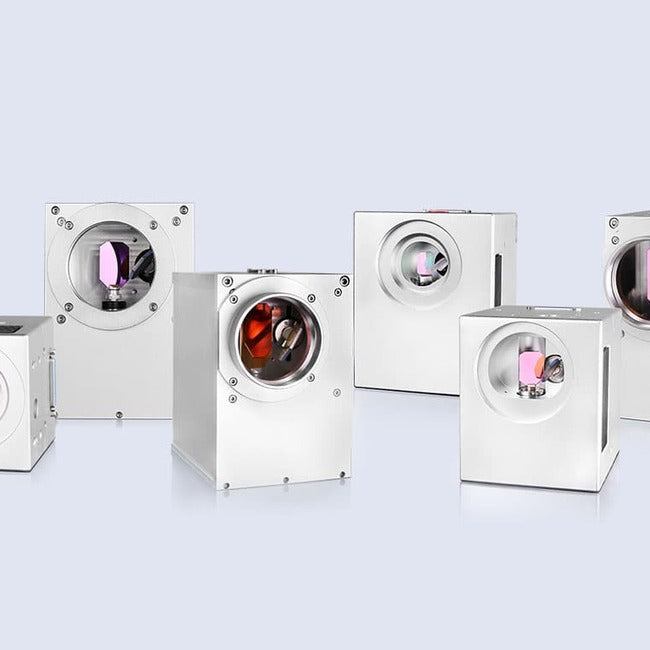

The UltraScan Head is a range of 2-axis (2D) galvanometer scan heads covering 10 / 14 / 20 / 30 / 50 mm apertures, with a rich mirror coating selection - UV, green, fiber, CO₂ and other options - and strict mirror quality control for flatness and damage threshold. The driver board uses a Class D power amplifier for high output power, low heating and low drift, and strict factory inspection keeps the repair rate very low. Two series are available: UltraScan I and the UltraScan II family.
Key Features:
- Low noises, high linearity and low drift
- Modular design, easy installment and maintenance
- Support varieties of F-theta lenses
- Available to general protocol (XY2-100) and other protocol
Specifications of UltraScan Head
| Parameter | Specifications |
|---|---|
| Product | UltraScan Head |
| Type | 2-axis (2D) galvanometer scan head with Class D driver board |
| Aperture Range | 7 mm to 50 mm (model dependent) |
| Mirror Coatings | UV, green, fiber, CO₂ options, and other coatings on request |
| F-theta Lenses | Supports a wide range of F-theta lenses |
| Typical Applications | Laser marking and cutting of non-metallic materials and selected metals: packaging (food, beverage, pharmaceutical), ceramics, electronic components, consumer device housings, buttons, nameplates, PCB barcodes, wire stripping and film cutting |
| UltraScan I | UltraScan10 ① | UltraScan10 ② | UltraScan10 ③ | UltraScan14 | UltraScan20 | UltraScan30 | UltraScan50 |
|---|---|---|---|---|---|---|---|
| Input Beam Aperture (mm) | 10 | 10 | 10 | 14 | 20 | 30 | 50 |
| Beam Displacement (mm) | 12.54 | 12.54 | 12.54 | 16.42 | 25.25 | 35.61 | 62.25 |
| Tracking Error (ms) | 0.14 | 0.14 | 0.14 | 0.23 | 0.45 | 0.70 | 1 |
| Repeatability (µrad) | < 2 | < 3 | < 2 | < 2 | < 2 | < 2 | < 2 |
| Offset Drift (µrad/K) | < 15 | < 15 | < 15 | < 15 | < 15 | < 15 | < 15 |
| Gain Drift (ppm/K) | < 80 | < 80 | < 80 | < 80 | < 80 | < 80 | < 80 |
| Long-term Drift Over 8 Hours (mrad) | < 0.15 | < 0.15 | < 0.15 | < 0.15 | < 0.15 | < 0.15 | < 0.15 |
| 1 % of Full Scale (ms) | 0.40 | 0.30 | 0.35 | 0.65 | 0.80 | 1.20 | 1.5 |
| 10 % of Full Scale (ms) | 1.20 | 1.00 | 1.10 | 1.60 | 2.50 | 4.50 | 6.5 |
| Positioning Speed (m/s) ④ | 10.0 | 20.0 | 15.0 | 10.0 | 5.0 | 3.0 | 1 |
| Scan Angle (°) ⑤ | ±25 | ||||||
| Gain Error (mrad) | < 5 | ||||||
| Zero Offset (mrad) | < 5 | ||||||
| Nonlinearity (%) | < 0.4 | ||||||
| Power Requirements | ±15 VDC, ≥ 3 A | ||||||
| Communication Protocol ⑥ | 16bit: XY2-100 20bit: ST2-100 | ||||||
| Operation Temperature (°C) | 25 ± 10 | ||||||
| Weight (kg) | 1.9 | 1.9 | 1.9 | 2.3 | 5.0 | 5.2 | 8.8 |
| Notes | ① Customization for precision marking. ② Customization for marking on the fly. ③ Customization for FPC and SLA applications. ④ Test using F-theta lens with focal length F=160 mm. ⑤ All angles above are optical angles. | ||||||
| UltraScan II | UltraScan II 7 | UltraScan II 10 | UltraScan II 14 | UltraScan II 20 | UltraScan II 30 |
|---|---|---|---|---|---|
| Input Beam Aperture (mm) | 7 | 10 | 14 | 20 | 30 |
| Beam Displacement (mm) | 9.77 | 12.54 | 16.42 | 25.25 | 35.53 |
| Tracking Error (ms) | 0.12 | 0.12 | 0.15 | 0.35 | 0.6 |
| Repeatability (µrad) | < 2 | < 2 | < 2 | < 2 | < 2 |
| Offset Drift (µrad/K) | < 12 | < 12 | < 12 | < 12 | < 12 |
| Gain Drift (ppm/K) | < 50 | < 50 | < 50 | < 50 | < 50 |
| Long-term Drift Over 8 Hours (mrad) | < 0.1 | < 0.1 | < 0.1 | < 0.1 | < 0.1 |
| 1 % of Full Scale (ms) | 0.22 | 0.30 | 0.35 | 0.70 | 1.10 |
| 10 % of Full Scale (ms) | 0.76 | 0.80 | 0.90 | 2.40 | 4.40 |
| Positioning Speed (m/s) ① | 25.0 | 18.0 | 14.0 | 6.0 | 4.0 |
| Scan Angle (°) ② | ±25 | ||||
| Gain Error (mrad) | < 5 | ||||
| Zero Offset (mrad) | < 5 | ||||
| Nonlinearity (%) | < 0.4 | ||||
| Power Requirements | ±15 VDC, ≥ 3 A | ||||
| Communication Protocol | 16bit: XY2-100 | ||||
| Operation Temperature (°C) | 25 ± 10 | ||||
| Weight (kg) | 1.6 | 1.9 | 2.3 | 5.0 | 5.2 |
| Notes | ① Test using F-theta lens with focal length F=160 mm. ② All angles above are optical angles. | ||||
Data Sheet: UltraScan Head (PDF)
UltraScan I and UltraScan II series, 7 mm to 50 mm apertures. Tell us your laser type and application and we will quote the right scan head.
