OEM-AO-2120 2120 nm Actively Q-Switched Infrared Laser
$1,000,000.00
Description: LD pumped all-solid-state AOM Q-switched laser at 2120 nm featuring high peak power, good beam quality and easy operation.
Applications: material processing (especially plastics), pumping of mid-infrared laser sources, medical procedures such as precise tissue ablation, ophthalmic surgery and dentistry
Model #: OEM-AO-2120
| Wavelength (nm) | 2120±2 |
| Operating Mode | Actively Q-switched |
| Output Power (W) | 1-3 |
| Average Power Stability (rms, 4 hours ± 3°C) | <5%, <3% |
| Pulse Duration (ns) | ~60 @ 10 kHz & 3 W |
| Repetition Rate (kHz) | 10 |
| Single Pulse Energy (µJ) | 100-300 |
| Peak Power (kW) | 1-5 |
| Beam Divergence, Full Angle (mrad) | <3 |
| Beam Diameter at the Aperture (1/e2, mm) | <4 |

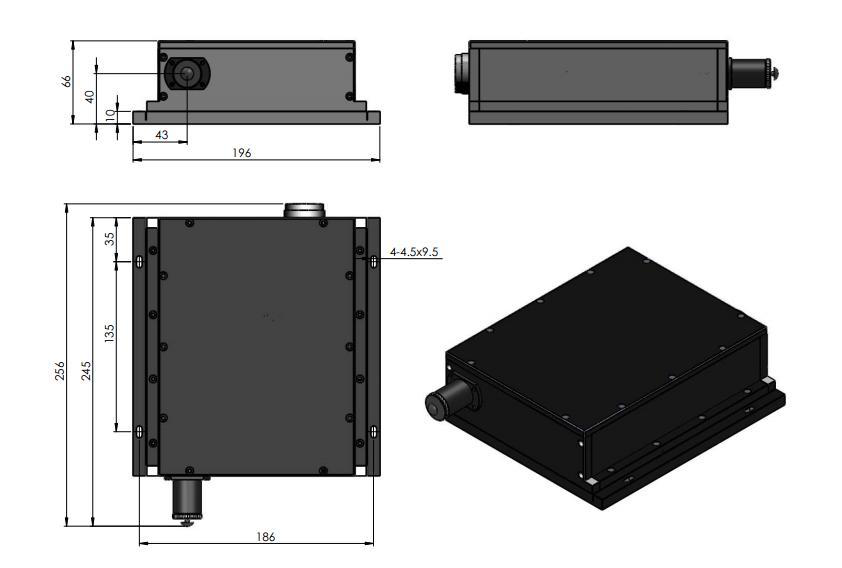

| Beam Height from Base Plate (mm) | 40 |
| Warm-up Time (minutes) | <10 |
| Cooled Method | Water cooled |
| Operating Temperature (°C) | 10-30 |
| Power Supply | PSU-MIR (3U) |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # OEM-AO-2120
Please request a quotation for a real price and lead time.
