259 nm LD Pumped All-Solid-State CW UV Laser UV-DP-259-B
$1,000,000.00
Description: All solid-state CW mode UV laser features ultra compact, easy operating, high power and stability.
Applications: flow cytometry, spectrum analysis, microscopy, semiconductor inspection, cell sorting, optical instrument, physics experiment
Model #: UV-DP-259-B
| Model | UV-DP-259-B |
| Wavelength | 259 nm |
| Operation Mode | CW |
| Average Power | 1-150 mW |
| Power Stability | <2%, <1%, <0.5% |
| Transverse Mode | Near TEM00 |
| Beam Diameter at the Aperture | <3.0 mm |
| Beam Divergence, Full Angle | <3.0 mrad |
| Warm Up Time | < 10 min. |
| Polarization Ratio | >50:1 (>100:1 optional) |
| Beam Height from Base Plate | 94 mm |
| Cooling Method | Water cooled (WCH-580) |
| Operating Temperature | 10 ~ 35 ℃ |
| Modulation Option | DC-1kHz; TTL and Analog optional |

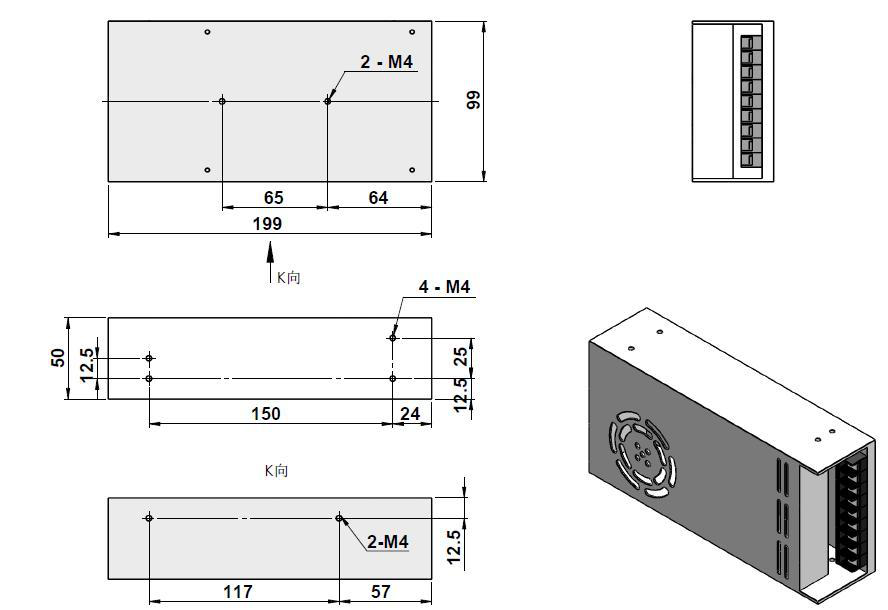

| Operating Voltage | 12V/25A |
| Expected Lifetime | >10000 hours |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # UV-DP-259-B
Please request a quotation for a real price and lead time.
