266 nm LD Pumped All-Solid-Sate Passively Q-switched Pulsed Laser MPL-S-266-LP
$1,000,000.00
Description: All solid state passively laser has the features of high peak power and short pulse duration.
Applications: scientific research, laser micromachining, laser radar ranging, environment monitoring, laser ultrasonic monitoring and LIBS
Model #: MPL-S-266-LP
| Model | MPL-S-266-LP |
| Wavelength | 266 nm |
| Operation Mode | Pulsed (Q-switched) |
| Average Power | ~15 mW |
| Single Pulse Energy | ~15 µJ |
| Pulse Width | ~0.4 ns |
| Peak Power | 37.5 kW |
| Repetition Rate | Int/Ext 1Hz-1kHz |
| M2 | / |
| Beam Divergence, Full Angle | <8 mrad |
| Power Stability | <5%, <3%, <2% |
| Transverse Mode | Near TEM00 |
| M2 | / |
| Beam Diameter at the Aperture | ~2.0 mm |
| Warm-Up Time | < 5 min. |

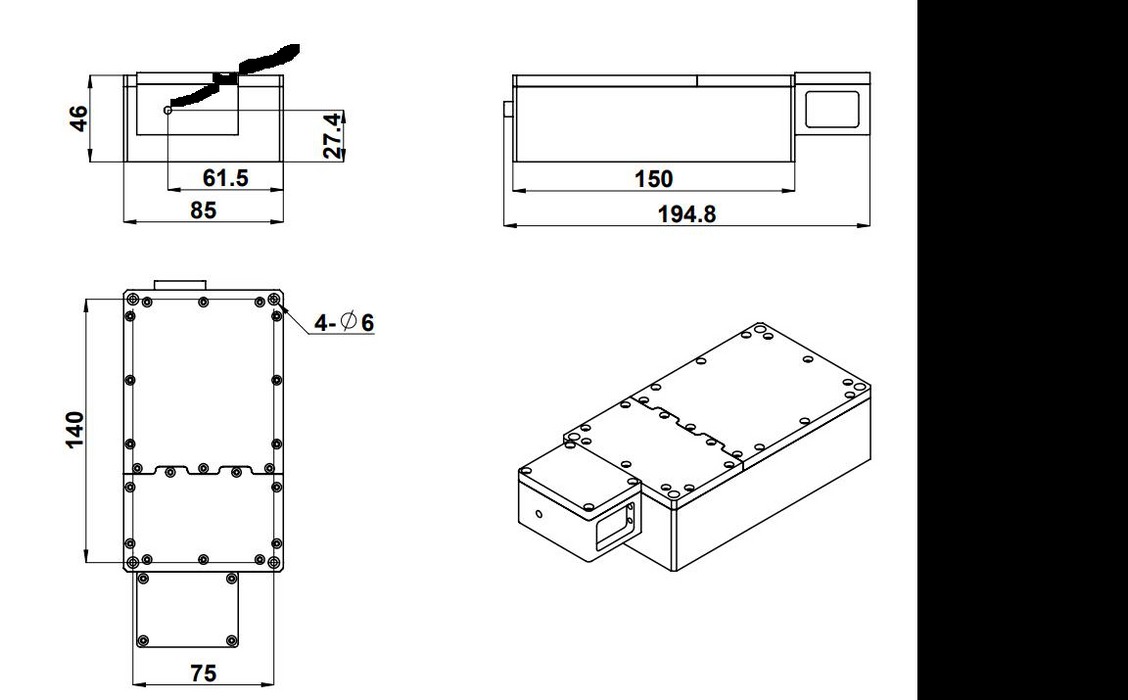

| Beam Height from Base Plate | 27.4 mm |
| Operating Temperature | 10 ~ 35 ℃ |
| Power Supply (100 - 240 VAC) | PSU-S-LP |
| Expected Lifetime | >10000 (hours) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MPL-S-266-LP
Please request a quotation for a real price and lead time.
