MPL-FN-278-L 278 nm LD Pumped All-Solid-Sate Passively Q-switched Pulsed Laser
$1,000,000.00
Description: All solid state UV laser features ultra compact, long lifetime, cost-effectiveness and easy operating.
Applications: UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment
Model #: MPL-FN-278-L
| Model | MPL-FN-278-L |
| Wavelength | 278 nm |
| Operation Mode | Pulsed (Q-switched) |
| Max Average Power | 1-5 mW |
| Single Pulse Energy | ~1 µJ |
| Pulse Width | ~35 ns |
| Peak Power | ~0.02 kW |
| Repetition Rate | 4-6 kHz |
| Power Stability | <5%, <3% |
| Transverse Mode | Near TEM00 |
| Beam Diameter at the Aperture | ~0.8 mm |
| Beam Divergence, Full Angle | <4 mrad |
| Polarization Ratio | >50:1, Horizontal (Vertical Optional) |
| Warm-Up Time | < 5 min. |

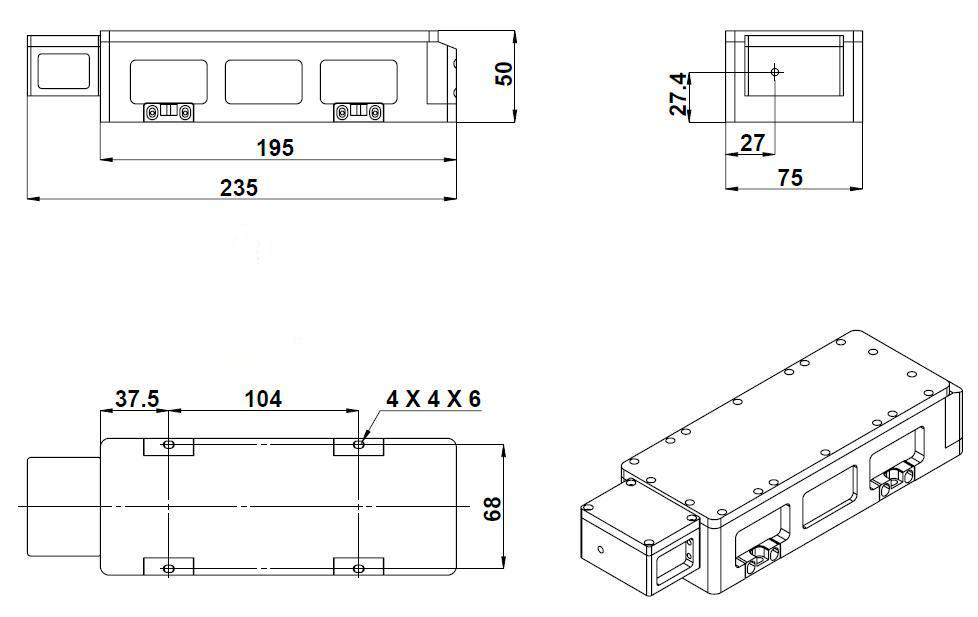

| Beam Height from Base Plate | 27.4 mm |
| Operating Temperature | 10 ~ 35 ℃ |
| Power Supply (90 - 264 VAC) | PSU-H-FDA |
| Expected Lifetime | >10000 (hours) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MPL-FN-278-L
Please request a quotation for a real price and lead time.
