AO-K-295 295 nm LD Pumped All-Solid-Sate Acousto-Optic Q-switched Pulsed Laser
$1,000,000.00
Description: All solid state AOM Q-switched laser at 295 nm has the features of high peak power and short pulse duration.
Applications: scientific research, laser radar, laser marking
Model #: AO-K-295
| Model | AO-K-295 |
| Wavelength | 295 nm |
| Operation Mode | Pulsed (Q-switched) |
| Average Power | 100 mW @5kHz |
| Single Pulse Energy | >20 µJ @5kHz |
| Repetition Rate | 5-10kHz |
| Pulse Width | <10 ns @5kHz |
| Peak Power | ~4 kW @5kHz |
| Power Stability | <5%, <3%, <2% |
| Beam Divergence, Full Angle | <3.5 mrad |
| Beam Diameter at the Aperture | ~1 mm |
| Polarization Ratio | >100:1 Horizontal |

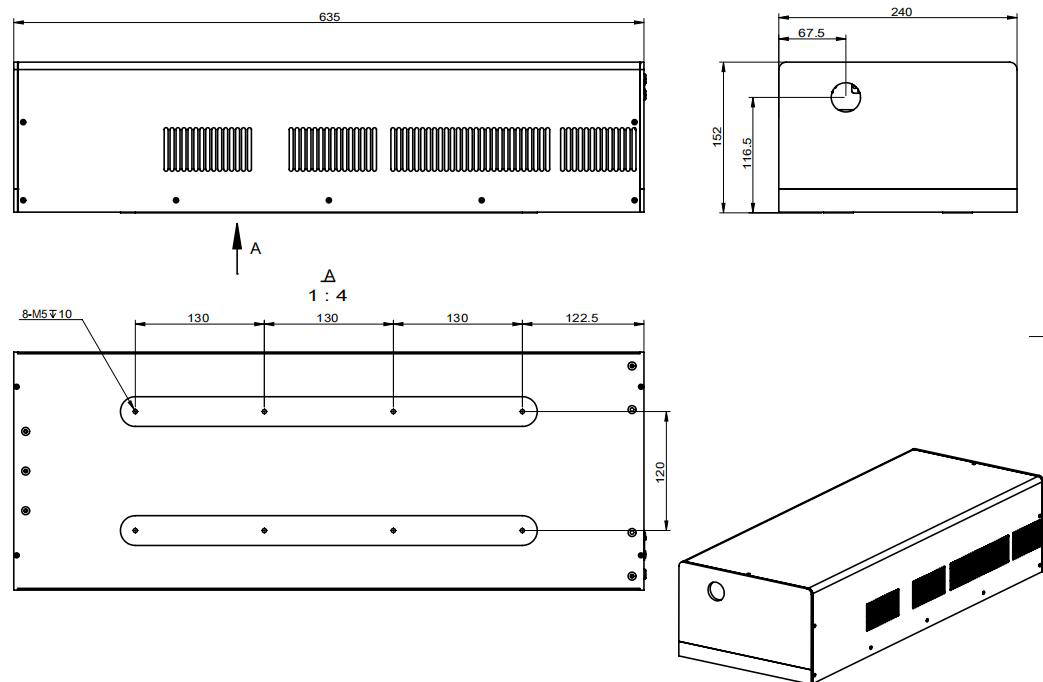

| Beam Height from Base Plate | 116.5 mm |
| Warm-Up Time | < 10 min. |
| Cooling Method | Air cooled |
| Operating Temperature | 10 ~ 35 ℃ |
| Operating Voltage | 24V/20.9A |
| Expected Lifetime | >10000 (hours) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-K-295
Please request a quotation for a real price and lead time.
