MDL-XD-470 470 nm LD Pumped All-Solid-State CW UV Laser
$1,000,000.00
Description: It features ultra compact design, long lifetime, cost-effectiveness and easy operation.
Applications: laser projection, laser shows, biomedical applications, holography, metrology
Model #: MDL-XD-470
| Model | MDL-XD-470 |
| Central Wavelength (nm) | 470±10 |
| Operating Mode | CW |
| Output Power (mW) | >8000, 9000, …, 16000 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3% |
| Polarization Direction | Horizontal+Vertical |
| Beam Diameter at the Aperture (mm) | ~5×5 |
| Beam Divergence, Full Angle (mrad) | <2.4×2.0 |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 10-35 |

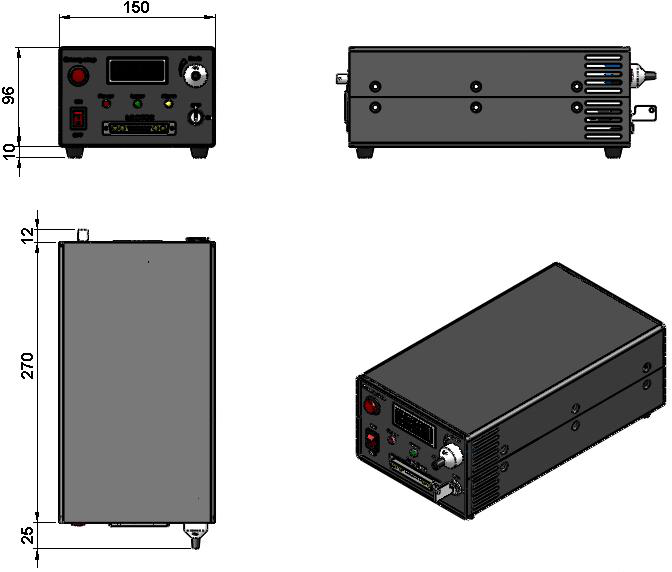

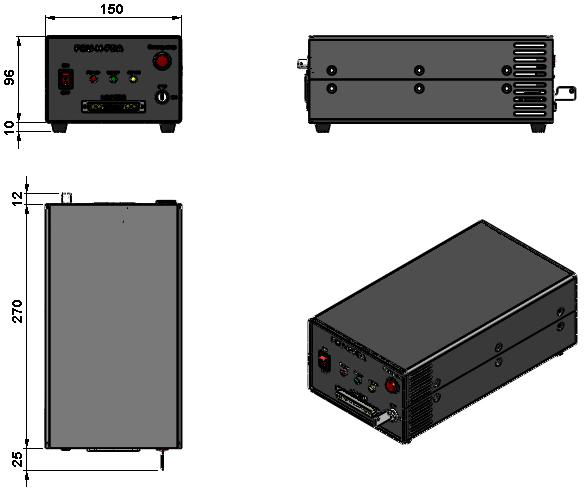

| Power Supply (100-240VAC) | PSU-N-LED/PSU-N-FDA |
| Modulation Option | TTL or Analog with 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-XD-470
Please request a quotation for a real price and lead time.
