MBL-U-473 473 nm LD Pumped All-Solid-State Blue Laser
$1,000,000.00
Description: All solid state laser at 473nm is made features of ultra compact, long lifetime, high stability and reliability.
Applications: scientific experiment, medical measurement, instrument, spectrum analysis
Model #: MBL-U-473
| Model | MBL-U-473 |
| Central Wavelength (nm) | 473±1 |
| Operating Mode | CW |
| Output Power (mW) | >100, …, 200 / >200, …, 300 |
| Power Stability (rms, over 4 hours) | <1%, <2%, <3% / <2%, <3%, <5% |
| Transverse Mode | TEM00 |
| M² Factor | <1.2 |
| Beam Diameter at the Aperture (1/e², mm) | <1.0 |
| Beam Divergence (mrad) | <1.5 |
| Pointing Stability After Warm-Up (mrad) | <0.05 |
| Polarization Ratio | >100:1, Vertical±5 degree |
| Warm-Up Time (minutes) | <10 |

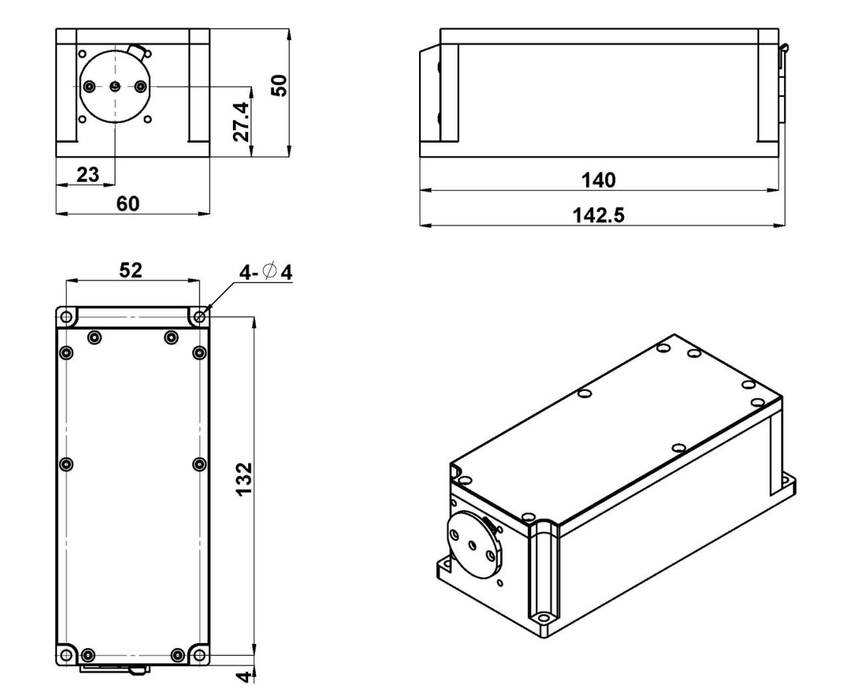

| Beam Height from Base Plate (mm) | 27.4 |
| Laser Head Consumption (W) | 15 (typical), <25 (40℃) |
| Max. Laser Head Base Plate Temp (℃) | 50 |
| Operating Temperature (℃) | 10-40 |

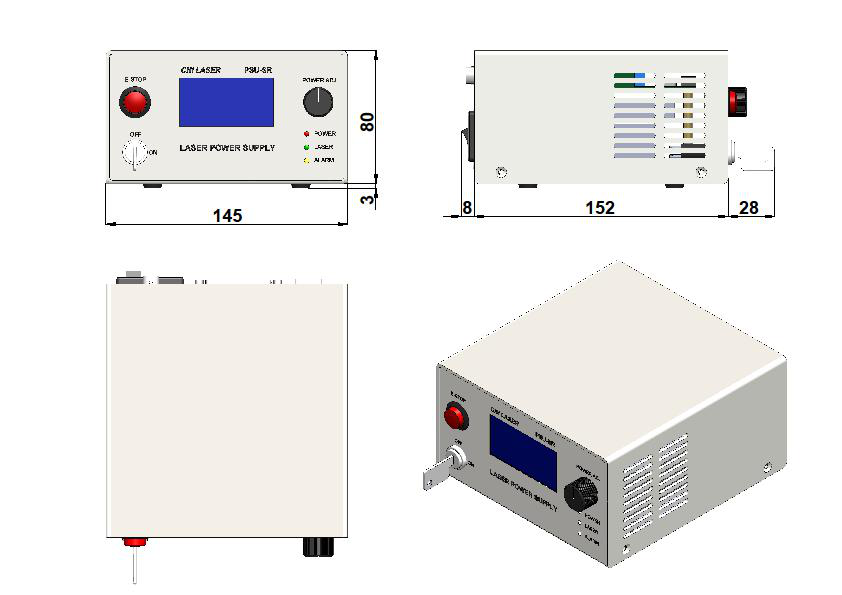

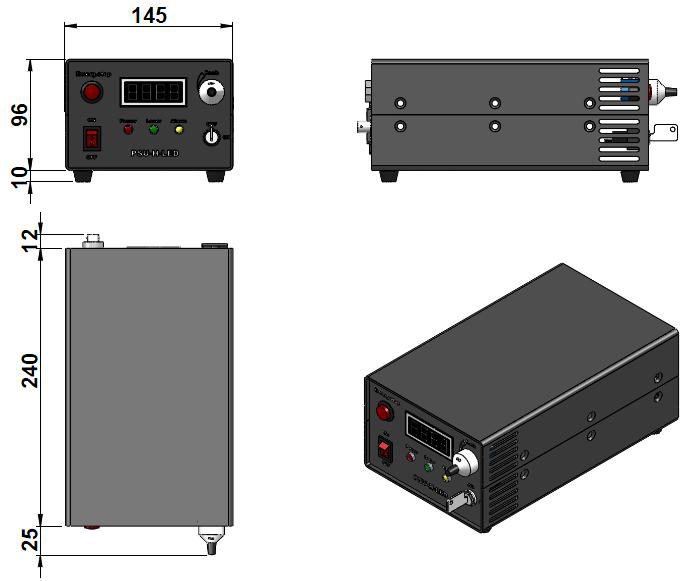

| Power Supply (90-264VAC) | PSU-H-LED/PSU-H-FDA/PSU-SR |
| Modulation Option | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; Analog optional |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MBL-U-473
Please request a quotation for a real price and lead time.
