MLL-FN-594 594 nm Low Noise Yellow Laser
$1,000,000.00
Description: Low noise yellow laser at 594nm is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: MLL-FN-594
| Wavelength (nm) | 594±1 |
| Operating Mode | CW |
| Output Power (mW) | >1, 10, 20, …, 100 |
| Power Stability (rms, over 4 hours) | <2%, <3%, <5% |
| Transverse Mode | TEM00 |
| Noise of Amplitude (rms, 1Hz~20MHz) | <1% |
| M² Factor | <1.5 |
| Beam Diameter at Aperture (1/e², mm) | <1.0 |
| Beam Divergence, Full Angle (mrad) | <2.0 |
| Polarization Ratio | >100:1, Horizontal±5 degree (Vertical Optional) |
| Warm-up Time (minutes) | <10 |
| Pointing Stability After Warm-up (mrad) | <0.05 |
| Beam Height from Base Plate (mm) | 27.4 |
| Operating Temperature (℃) | 10~35 |

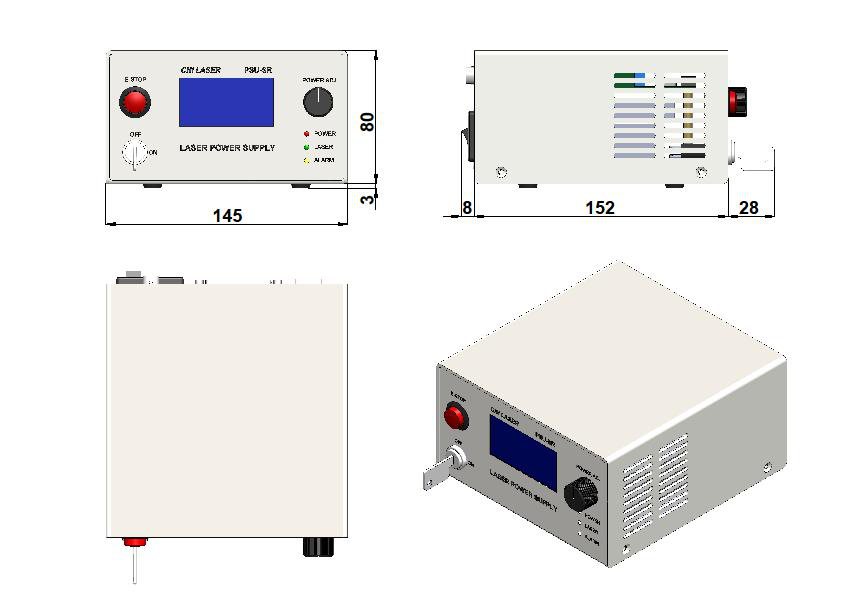

| Power Supply (90-264VAC) | PSU-H-LED / PSU-H-FDA / PSU-SR |
| Modulation Option | TTL on/off, 1Hz-1kHz, 1kHz-10kHz, 10kHz-30kHz; and Analog modulation optional |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-FN-594
Please request a quotation for a real price and lead time.
