PGL-H1 594 nm Compact Blue Laser Module
$1,000,000.00
Description: PGL-H1 high power laser module is made features of small size, high output power, long lifetime, which made it be used widely in collimation, laser medical treatment, scientific experiment, optical instrument and so on.
Applications: collimation, laser medical treatment, scientific experiment, optical instrument
Model #: PGL-H1
| Wavelength (nm) | 593.5 |
| Wavelength Tolerance (nm) | ±1 |
| Output Power (mW) | 1-30 |
| Operating Mode | CW |
| Transverse Mode | Near TEM00 |
| Beam Diameter at Aperture (1/e², mm) | ~1.5 |
| Beam Divergence, Full Angle (mrad) | ~1.5 |
| Working Time (seconds) | 30 |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
| Operating Voltage (internal PCB) | 3VDC |
| Operating Voltage (external PCB) | 5VDC |
| Connection | Cable with flying leads |
| Operating Temperature | 10°C to 35°C |
| Storage Temperature | -20°C to 80°C |
| Humidity | <90%, non-condensing |
| Dissipated Heat | <6W |

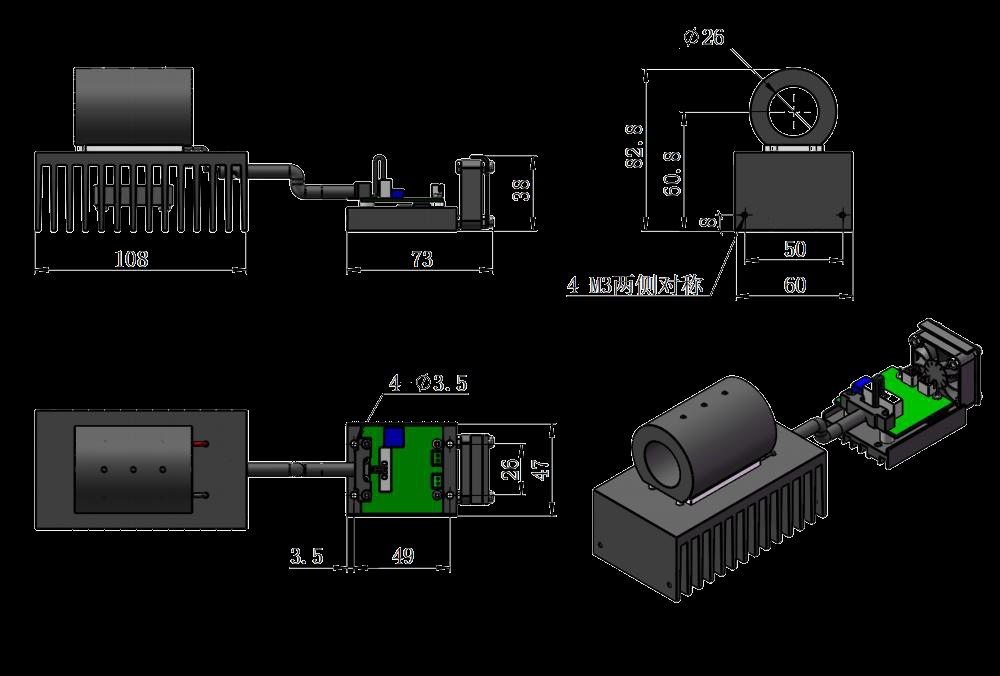

| Laser Head Diameter Φ (mm) | 26 |
| Length (mm) | 100 |
| Material | Aluminum |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-H1
Please request a quotation for a real price and lead time.
