MGL-SF-597-N 597 nm LD Pumped All-Solid-State Yellow Laser
$1,000,000.00
Description: With narrow spectral bandwidth, spectral purity and a high level of features of ultra compact, long lifetime, and easy operating, which is used in laser display, medical.
Applications: laser display, medical
Model #: MGL-SF-597-N
| Wavelength (nm) | 597±1 |
| Operating Mode | CW |
| Output Power (mW) | 1-30 |
| Power Stability (rms, 4 hours ±3℃) | <5%, <3% |
| Spectral Line Width (nm) | <0.03 |
| Transverse Mode | Near TEM00 |
| Beam Divergence, Full Angle (mrad) | <3 |
| Beam Diameter at Aperture (1/e², mm) | ~4 |
| Polarization Ratio | >100:1 |
| Beam Height from Base Plate (mm) | 100 |
| Warm-up Time (minutes) | <10 |

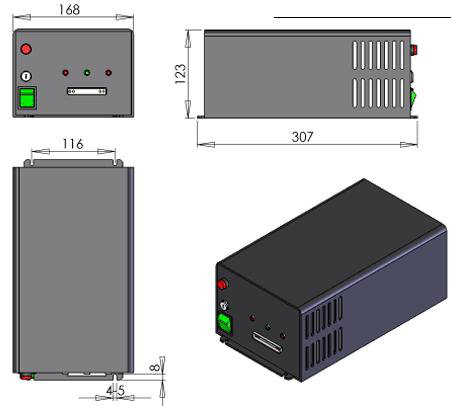

| Power Supply (100-240VAC) | PSU-W-FDA |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MGL-SF-597-N
Please request a quotation for a real price and lead time.
