AO-K-601 601 nm LD Pumped All-Solid-State Q-Switched Pulsed Laser
$1,000,000.00
Description: All solid state Q-switched laser at 601nm has the features of ultra compact, easy operating, which is widely used in micro-electronics, metrology and material processing, laser medical treatment, scientific experiment, etc.
Applications: micro-electronics, metrology and material processing, laser medical treatment, scientific experiment
Model #: AO-K-601
| Central Wavelength (nm) | 601±2 |
| Operating Mode | Acousto-Optic Q-switched |
| Average Power (mW) | 1~250 |
| Repetition Rate (kHz) | 10 |
| Pulse Duration (ns) | <10 |
| Single Pulse Energy (µJ) | 1~25 |
| Peak Power (kW) | 2.5 |
| Beam Diameter at Aperture (1/e², mm) | <3 |
| Beam Divergence, Full Angle (mrad) | <2 |
| Power Stability (rms, over 4 hours) | <3%, <5% |

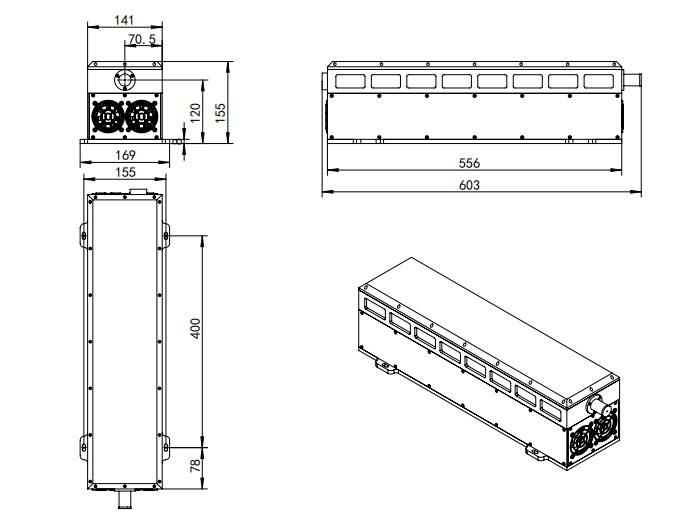

| Beam Height from Base Plate (mm) | 120 |
| Warm-up Time (minutes) | <10 |

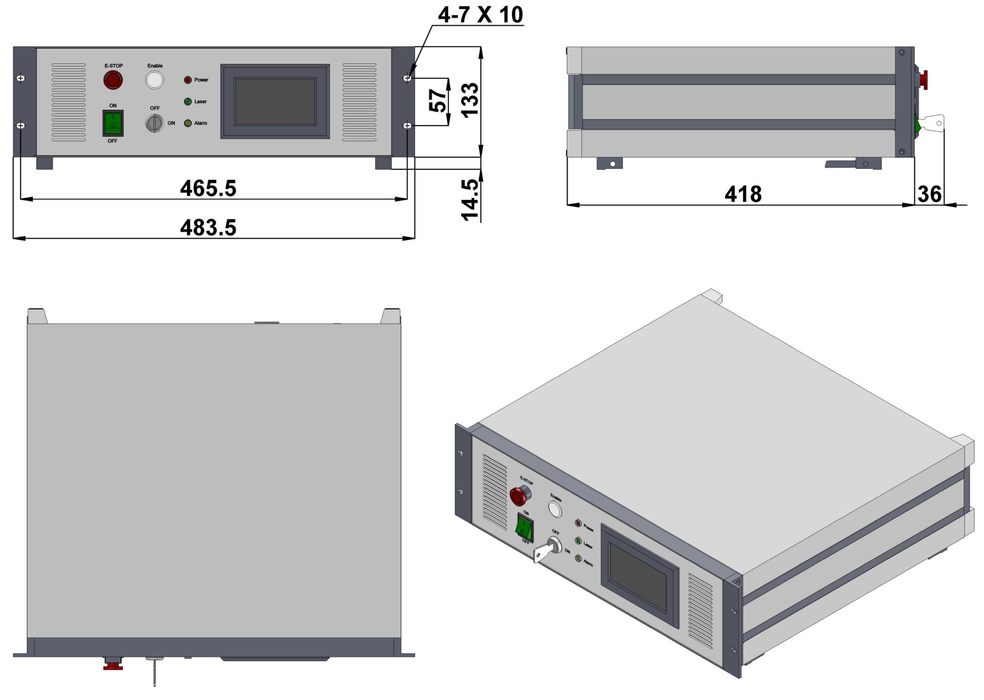

| Power Supply | PSU-AOM (3U) |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-K-601
Please request a quotation for a real price and lead time.
