MRL-SF-612 612 nm LD Pumped All-Solid-State Red Laser
$1,000,000.00
Description: CNI's DPSS laser at 612nm features ultra compact, long lifetime and easy operating, it is widely used in communication, medical treatment, scientific research, etc.
Applications: communication, medical treatment, scientific research
Model #: MRL-SF-612
| Wavelength (nm) | 612±1 |
| Operating Mode | CW |
| Output Power (mW) | >1, 10, 50, … , 100 |
| Power Stability (rms, over 4 hours) | <3%, <5% |
| Transverse Mode | Near TEM00 |
| Beam Divergence, Full Angle (mrad) | <2 |
| Beam Diameter at Aperture (1/e², mm) | ~4 |
| Polarization Ratio | >100:1 |
| Beam Height from Base Plate (mm) | 100 |
| Warm-up Time (minutes) | <10 |
| Operating Temperature (℃) | 15~30 |

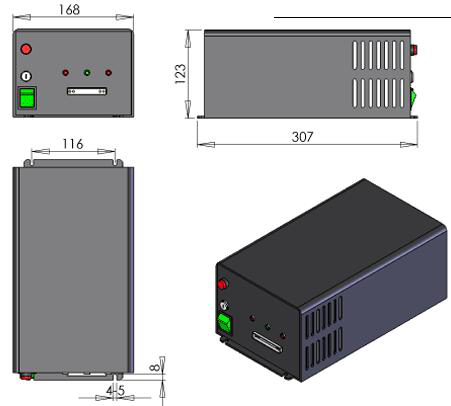

| Power Supply (90-264VAC) | PSU-W-FDA |
| Expected Lifetime (hours) | 10000 |
| Warranty Period | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-SF-612
Please request a quotation for a real price and lead time.
