MDL-III-627 627 nm Red Diode Laser
$1,000,000.00
Description: It features ultra compact design, long lifetime, cost-effectiveness and easy operation. They are used in medical imaging, flow cytometry, DNA sequencing, etc.
Applications: medical imaging, flow cytometry, DNA sequencing
Model #: MDL-III-627
| Central Wavelength (nm) | 627±3 |
| Operating Mode | CW |
| Output Power (mW) | 1-300 |
| Power Stability (rms, 4 hours ±3°C) | <2%, <1%, <0.5% |
| Transverse Mode | Multimode |
| Beam Diameter at Aperture (mm) | ~5×8 |
| Beam Divergence, Full Angle (mrad) | <3.0×0.5 |
| Warm-up Time (minutes) | <5 |
| Cooling Method | Conduction |
| Beam Height from Base Plate (mm) | 24.8 |
| Operating Temperature (°C) | 10-35 |

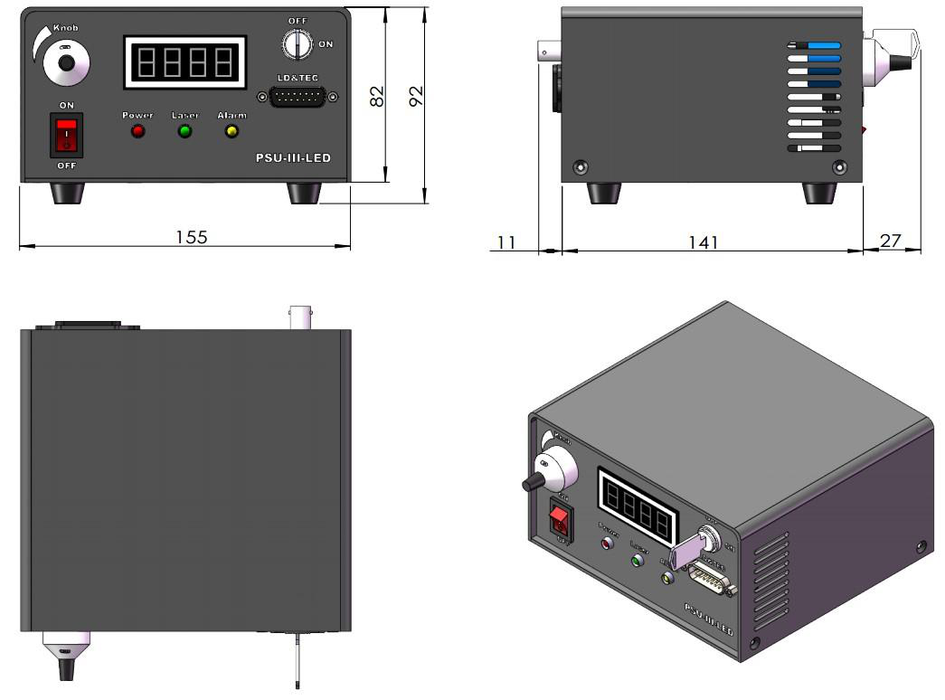

| Power Supply (100-240VAC) | PSU-III-FDA / PSU-III-LED / PSU-A-D / PSU-III-OEM |
| Modulation Option | DC-1kHz, 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MDL-III-627
Please request a quotation for a real price and lead time.
