MRL-U-627 627 nm LD Pumped All-Solid-State Red Laser
$1,000,000.00
Description: All solid state laser at 627nm is made features of ultra compact, long lifetime, high stability and reliability, which is used in scientific experiment, medical measurement, instrument, spectrum analysis, etc.
Applications: scientific experiment, medical measurement, instrument, spectrum analysis
Model #: MRL-U-627
| Wavelength (nm) | 627±2 |
| Operating Mode | CW |
| Output Power (mW) | 1-200 |
| Power Stability (rms, 4 hours ±3℃) | <3%, <2%, (<1% optional @Water Cooled) |
| Transverse Mode | TEM00 |
| Beam Diameter at Aperture (1/e², mm) | ~3.0 |
| Beam Divergence, Full Angle (mrad) | <3.0 |
| Polarization Ratio | >100:1 |
| Cooled Method | Air Cooled / Water Cooled |
| Warm-up Time (minutes) | <10 |
| Beam Height from Base Plate (mm) | 108 @Air Cooled / 61.5 @Water Cooled |

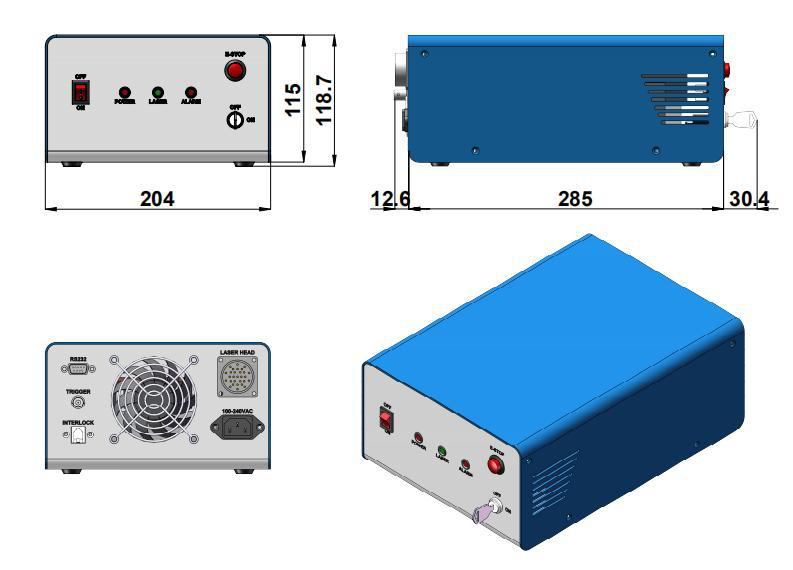

| Power Supply (100-240VAC) | PSU-SF |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MRL-U-627
Please request a quotation for a real price and lead time.
