TUN-TiN-770-840 770-840 nm Narrow Linewidth Ti:Sapphire Q-Switched Laser
$1,000,000.00
Description: All solid state narrow linewidth Q-switched Ti:Sapphire laser at 770-840nm, widely used in marking, carving, measure, scientific research.
Applications: marking, carving, measure, scientific research
Model #: TUN-TiN-770-840
| Model | TUN-TiN-770-840 |
| Wavelength (nm) | 770-840 |
| Operating Mode | Actively Q-switched |
| Line Width (pm) | <40 |
| Average Power (mW)¹ | 1-400 @50kHz |
| Pulse Duration (ns) | <40 @50kHz&400mW |
| Repetition Rate (kHz)² | 10-50 |
| Single Pulse Energy (µJ) | 1-8 @50kHz |
| Peak Power (kW) | 0.1-0.32 @50kHz |
| Average Power Stability (rms, 4 hours ±3°C) | <5%, <3% |
| Beam Divergence, Full Angle (mrad) | <3.5 |
| Beam Diameter at the Aperture (1/e², mm) | <2 |

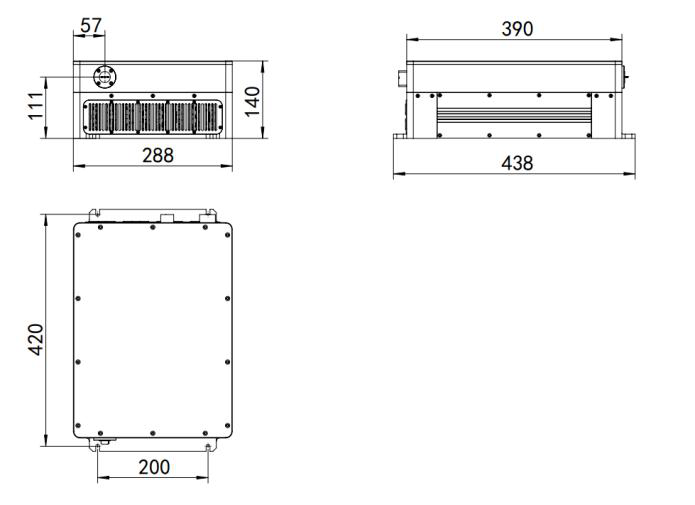

| Beam Height from Base Plate (mm) | 111 |
| Warm-Up Time (minutes) | <10 |
| Cooled Method | Water cooled |
| Operating Temperature (℃) | 15-35 |

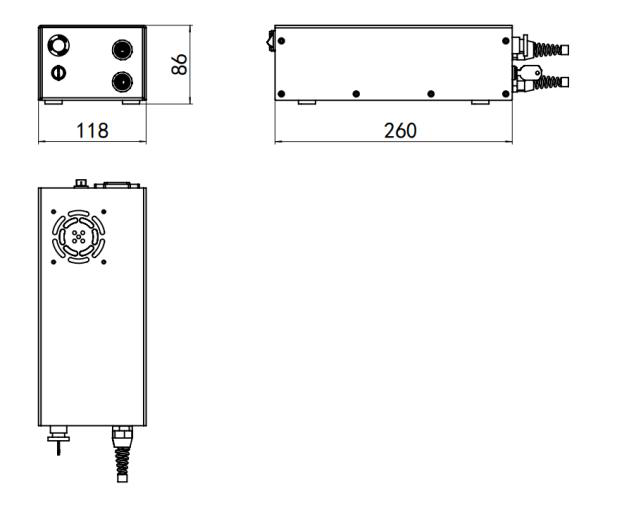

| Power Supply (100-240VAC) | PSU-AOM |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # TUN-TiN-770-840
Please request a quotation for a real price and lead time.
