PGL-VI-FC Series Fiber-Coupled Laser
$1,000,000.00
Description: The PGL-VI-FC series laser is a compact fiber-coupled laser system with high efficiency and long term stability.
Applications: fiber coupled laser applications, scientific research, industrial
Model #: PGL-VI-FC
| Model | PGL-VI-FC |
| Wavelength (nm) | 375±10 / 405±10 / 450±10 / 520±10 / 532±1 / 589±1 / 637±10 / 658±10 / 785±10 / 808±5 / 830±10 / 850±10 / 940±10 / 980±10 |
| Power (mW) | 1-30 (375) / 1-100 (405-980) / 1-50 (532, 589) |
| Fiber Core (µm) | 400 |
| Connector | FC/SMA905 |
| Power Stability (rms) | <5% @25℃ |
| Expected Lifetime (hours) | 10000 |
| Warranty (years) | 1 |
| Operating Voltage (internal PCB) | 5VDC |
| Modulation | Optional TTL or Analog 0-3V, 0-5V |
| Connection | Cable with flying leads |
| Operating Temperature (℃) | 10-35 |
| Storage Temperature (℃) | -10 to 70 |
| Humidity | <90%, non-condensing |

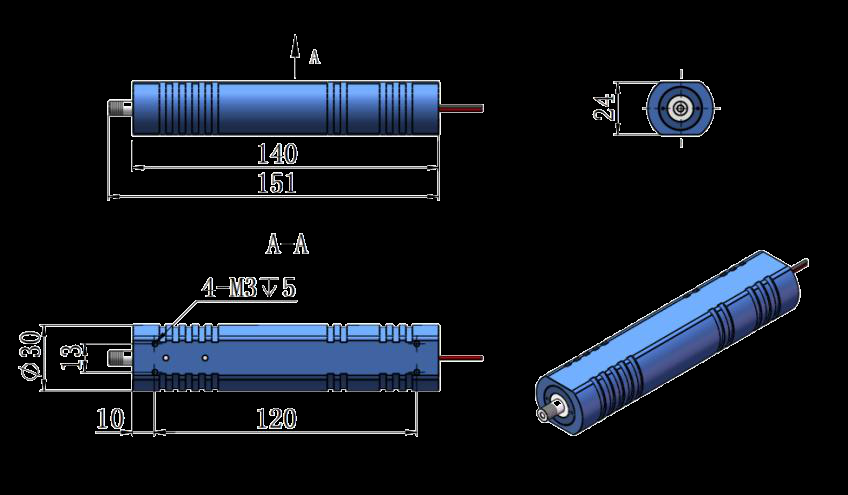

| Dimensions of Laser Head (mm) | Φ56×250 (PGL-FC-375/589) / Φ30×151 (PGL-FC) |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # PGL-VI-FC
Please request a quotation for a real price and lead time.
