MLL-III-870L 870 nm Low Noise Infrared Diode Laser
$1,000,000.00
Description: Ultra compact low noise infrared diode laser at 870 nm featuring long lifetime, cost-effectiveness and easy operation.
Applications: medical imaging, flow cytometry, DNA sequencing, etc.
Model #: MLL-III-870L
| Central Wavelength (nm) | 870±15 |
| Operating Mode | CW |
| Output Power (mW) | 1-10 |
| Power Stability (rms, 4 hours ± 3°C) | <2%, <1%, <0.5% |
| Transverse Mode | Near TEM00 |
| Noise of Amplitude (rms, 20 Hz-20 MHz) | <1%, <0.5% |
| Beam Diameter at the Aperture (1/e2, mm) | ~4.0 |
| Beam Divergence, Full Angle (mrad) | <1.0 |
| Polarization Ratio | >10:1, (>50:1 optional) |
| Polarization Direction | Horizontal±5 degree (Vertical optional) |
| Warm-up Time (minutes) | <5 |
| Cooling Method | Conduction |
| Beam Height from Base Plate (mm) | 24.8 |
| Operating Temperature (°C) | 10-35 |

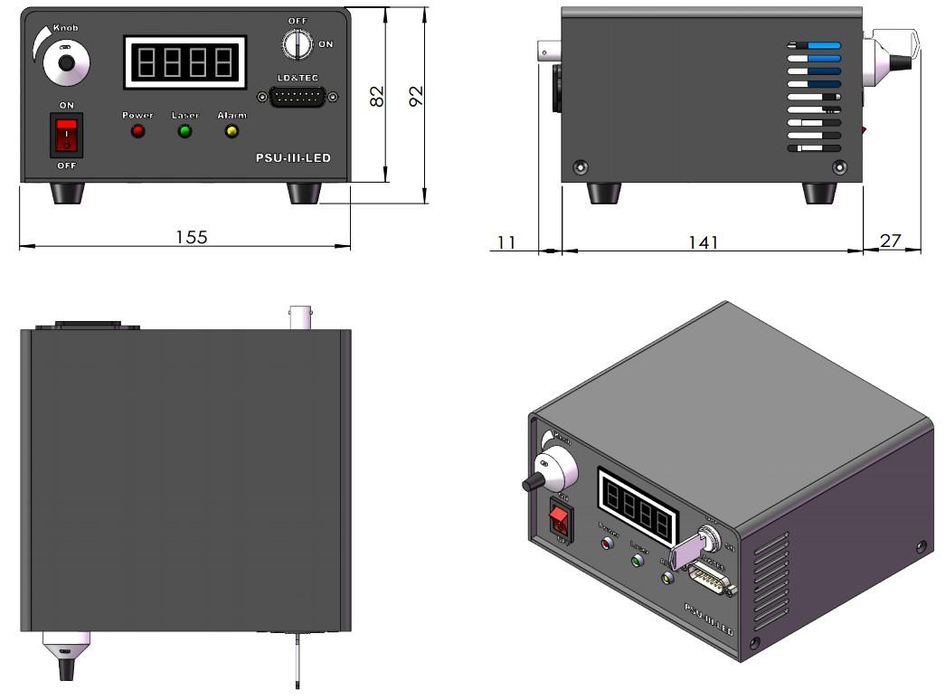

| Power Supply (100-240 VAC) | PSU-III-FDA/PSU-III-LED/PSU-A-D/PSU-III-OEM |
| Modulation Option | DC-1 kHz, 1 kHz-10 kHz, 10 kHz-30 kHz, 30 kHz-100 kHz optional; TTL and Analog optional |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # MLL-III-870L
Please request a quotation for a real price and lead time.
