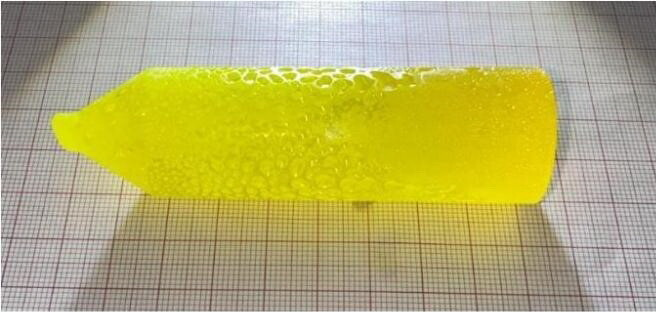

AGS (AgGaS2) Nonlinear Crystal
AGS (AgGaS2) Nonlinear Crystal
AgGaS2(AGS) crystal is one of the most effective nonlinear laser crystals used in the infrared working band at present. Because of its large nonlinear coefficient, high infrared transmittance, low optical absorption and scattering, and low wavefront distortion performance, its application in the infrared field has been popularized more and more. At present, this kind of crystal is the best choice for the frequency doubling material of
Key Features and Applications
- l Used in the infrared field with large nonlinear optical coefficient and high transmittance.
- l Frequency doubling device for outputting 10.6μm CO2 laser
- l It can be used in OPO device of Nd: YAG laser.
- l Suitable for frequency mixing in OPO output from Nd:YAG lasers, Ti:sapphire lasers, and various dye lasers.
Specifications
| Parameter | Specifications |
|---|---|
| Transmission Range | 0.47 – 13 μm |
| Lattice Constants | a = 5.757 Å, c = 10.311 Å |
| Density | 4.58 g/cm³ |
| Mohs Hardness | 3.0 - 3.5 |
| Nonlinear Coefficient | d₃₆ = 12.5 pm/V @ 10.6 μm |
| Melting Point | 998°C |
| Absorptivity | < 0.03 cm⁻¹ @ 1.064 μm |
| Thermal Conductivity | 1.0 W/m/°C |
| SHG Phase Matching | 1.8 - 11.2 μm |
| Damage Threshold | 30 MW/cm² (surface) @ 1.064 μm, 10 ns |
| Thermal Expansivity | ‖C: -8.1 x 10⁻⁶ /°C |
Data Sheet: AGS (AgGaS2) Nonlinear Crystal (PDF)
Dimensions, orientation and coatings are made to order - send us your specification for a quotation.
