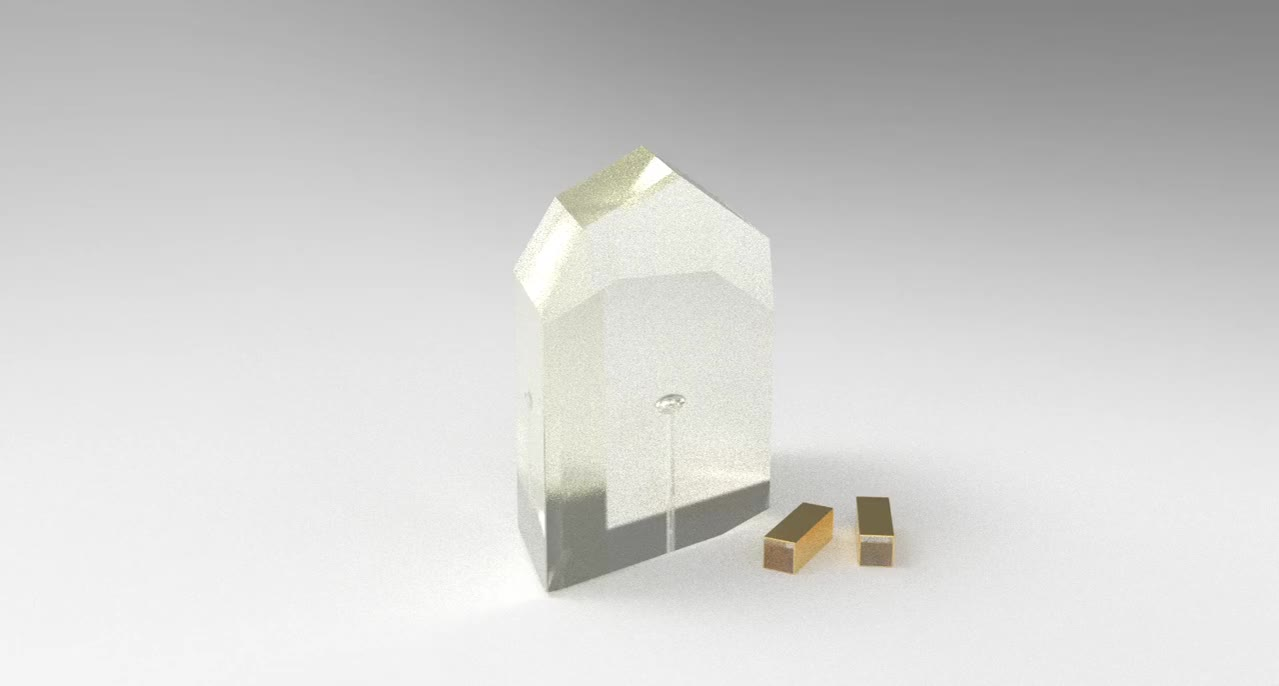

RTP Nonlinear Crystal
RTP Nonlinear Crystal
RTP - Rubidium Titanyl Phosphate (RbTiOPO4 ) Rubidium Titanyl Phosphate (RbTiOPO4 or RTP) is an isomorph of KTP crystal which is used in nonlinear and Electro-Optical applications. It has advantages of high damage threshold (about 1.8 times of KTP), high resistivity, high repetition rate, no hygroscopy and no induced piezo-electric effect with electrical signals up to 60 kHz. Its transmission range is 350 nm to 4500 nm. Growing OrientationAlong Y-axisMaximum Length (5×5 mm2 aperture)25 mmLength Tolerance+ 0.5/- 0.1 mmSurface Quality (Scratch/Dig)20/10 to MIL-PRF-13830BFlatnessλ/6 @633 nmParallelism20 arc secPerpendicularity≦15 arc minAngle Tolerance≦0.5 °CoatingAR-coatingsQuality Warranty PeriodOne year under proper use
Specifications
| Parameter | Specifications |
|---|---|
| Growing Orientation | Along Y-axis |
| Maximum Length (5×5 mm2 aperture) | 25 mm |
| Length Tolerance | + 0.5/- 0.1 mm |
| Surface Quality (Scratch/Dig) | 20/10 to MIL-PRF-13830B |
| Flatness | λ/6 @633 nm |
| Parallelism | 20 arc sec |
| Perpendicularity | ≦15 arc min |
| Angle Tolerance | ≦0.5 ° |
| Coating | AR-coatings |
| Quality Warranty Period | One year under proper use |
Product Video
Data Sheet: RTP Nonlinear Crystal (PDF)
Dimensions, orientation and coatings are made to order - send us your specification for a quotation.
