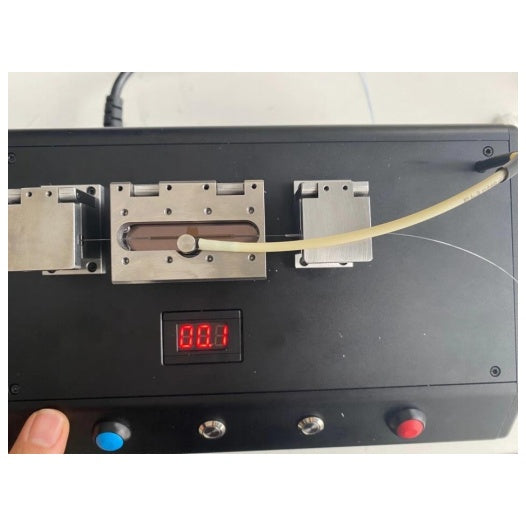

SH-T0X Optical Fiber Recoating Machine
SH-T0X Optical Fiber Recoating Machine
The SH-T0X series is a high-precision optical fiber recoater for repairing the coating of fusion-spliced fiber. Four types (HXGK-T01 to HXGK-T04) cover ordinary fiber, ribbon fiber and polarization-maintaining fiber. It is a multi-functional coating machine for fiber optic recoating repair, used in scientific research, fiber optic sensing, fiber optic gyroscopes, optical switches, fiber lasers and fiber optic communications. It repairs the outer coating layer of the splice, restoring the fiber's physical and optical characteristics and enhancing flexibility to protect the bare fiber and the fusion point.
Key Features
- T0X series high-precision optical fiber recoater, available in four types (HXGK-T01 to HXGK-T04).
- Suitable for ordinary fiber, ribbon fiber and polarization-maintaining fiber.
- Multi-functional coating machine for fiber optic recoating repair, widely used in scientific research, fiber optic sensing, fiber optic gyroscopes, optical switches, fiber optic lasers and fiber optic communications.
- Repairs the outer coating layer of fusion-spliced optical fibers, restoring their physical and optical characteristics and enhancing fiber flexibility to protect the bare fiber and the fusion point.
- Recoating length 4 – 50 mm; a 100 mm extension module can be customized.
Specifications
| Parameter | Specifications |
|---|---|
| Model | SH-T0X |
| Size | 249 mm × 155 mm × 175 mm |
| Weight | 5 kg |
| Usage | Semi-automatic |
| Power Supply | 220 V 50/60 Hz |
| Glue Injection System | Convenient resin storage and pressure injection pump design for quick filling or replacement of resin |
| Injection Method | Semi-automatic button injection |
| Injection Speed | 0.0015 ml/s |
| Injection Volume | ≤ 0.006 ml |
| Suction Port Pressure | −85 to −110 kPa |
| Light | LED light |
| Recoating Time | Glue injection 6 – 10 s; high-refractive glue curing 1 s; low-refractive glue curing 7 s |
| Recoating Cycle | 60 s |
| Recoating Diameter | 180, 200, 280, 300, 430, 600, 700, 860, 900 µm (optional); other diameters customizable |
| Recoating Length | 4 – 50 mm adjustable; 100 mm extension module can be customized |
| UV-curable Materials | Compatible with high and low refractive index recoating materials; adapts to curable acrylic recoating materials, user-replaceable |
| Mold Type | Quartz |
| Mold Cleaning | Must be cleaned after each application |
| Operating Environment | Temperature 0 – 40 °C, humidity within 90 %, no condensation |
| Storage Environment | Temperature −40 to 60 °C, humidity within 90 %, no condensation |
| Applicable Scope | Fiber within 900 µm in diameter |
Data Sheet: SH-T0X Optical Fiber Recoating Machine (PDF)
