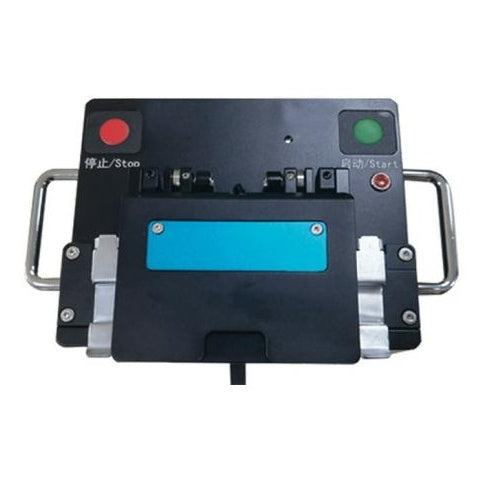

SH-T101 Optical Fiber Recoater
SH-T101 Optical Fiber Recoater
The SH-T101 is a UV-curing optical fiber recoater for repairing the coating of spliced or bare fiber. It restores the protective coating over the splice area and recovers fiber elasticity. High-refractive-index adhesives cure in 1 s and low-refractive-index adhesives in 7 s. Interchangeable quartz molds cover single fibers, ribbon fibers (2 to 12) and polarization-maintaining or special-structure fibers (elliptical, polarized, multi-core).
Key Features
- Recoats spliced fiber or bare fiber and repairs the coating, protecting the splice area and recovering fiber elasticity.
- High-refractive glue cures in 1 s; low-refractive glue cures in 7 s.
- Suitable for single-mode, multimode, polarization-maintaining and special-structure fibers (elliptical, polarized, multi-core).
Specifications
| Parameter | Specifications |
|---|---|
| Model | SH-T101 |
| Applicable Fiber Coating | Single fiber; ribbon fiber (2 – 12) |
| Recoating Length | 4 – 50 mm |
| UV Wavelength | 365 nm |
| Recoat Material | UV-curable acrylate; recommended viscosity for other materials 2,000 – 6,000 cps |
| Mold Material | Quartz |
| Dimensions | 130 mm × 105 mm × 105 mm |
| Power Supply | 24 VDC 6 A; 120 – 240 VAC 50/60 Hz |
| Standard Package | Fiber recoater SH-T101 (1 pc); AC adapter ACDC24, 24 VDC 12.5 A, 110 – 240 VAC (1 pc) |
| Accessories | UV-curable molds, 1 pc each: FRM-195 (195 µm), FRM-280 (280 µm), FRM-450 (450 µm), FRM-600 (600 µm); FRM-xxxx custom-diameter mold |
Data Sheet: SH-T101 Optical Fiber Recoater (PDF)
