ExtraScan Head
ExtraScan Head

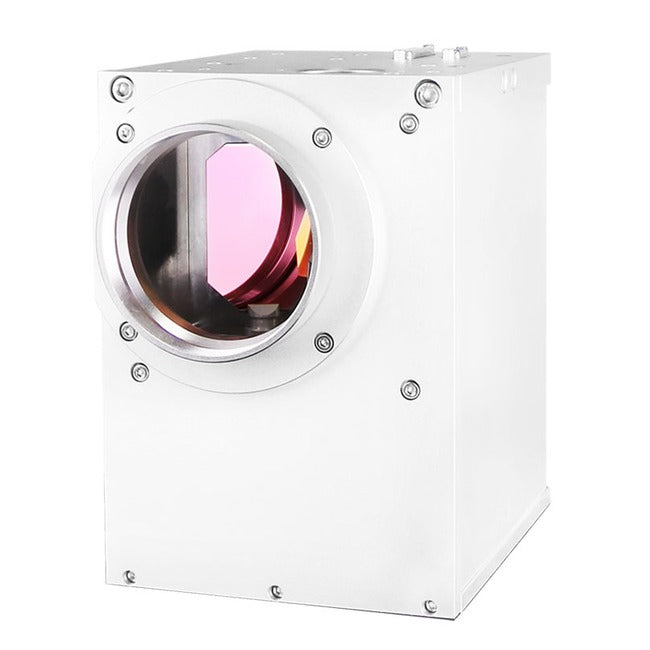

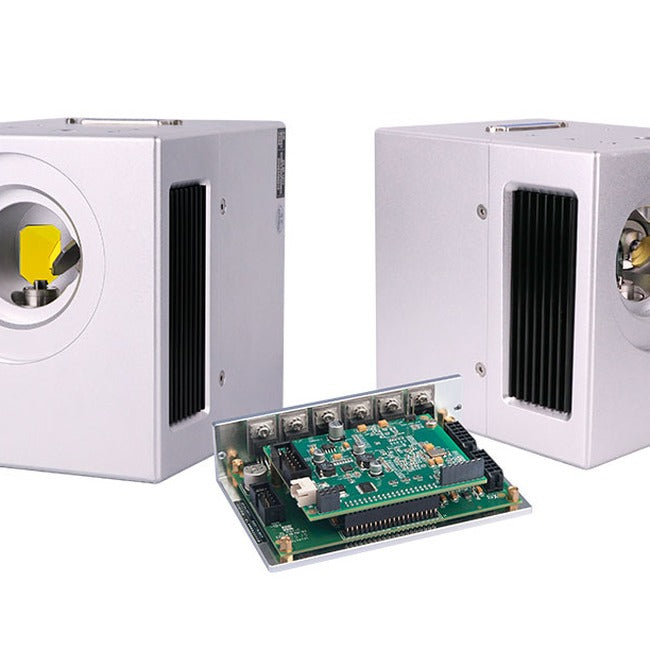

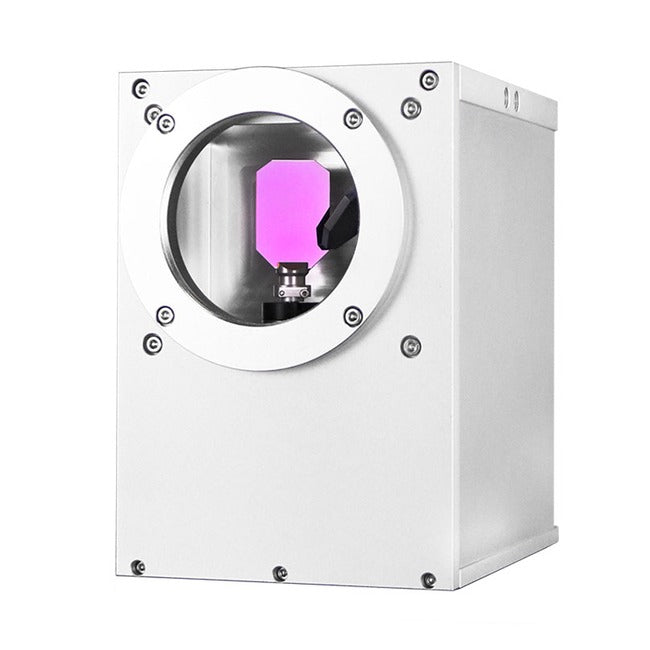

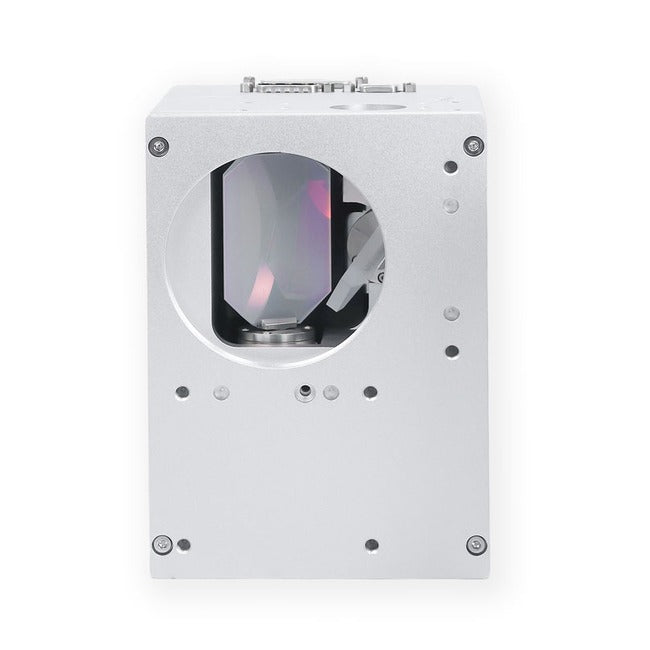

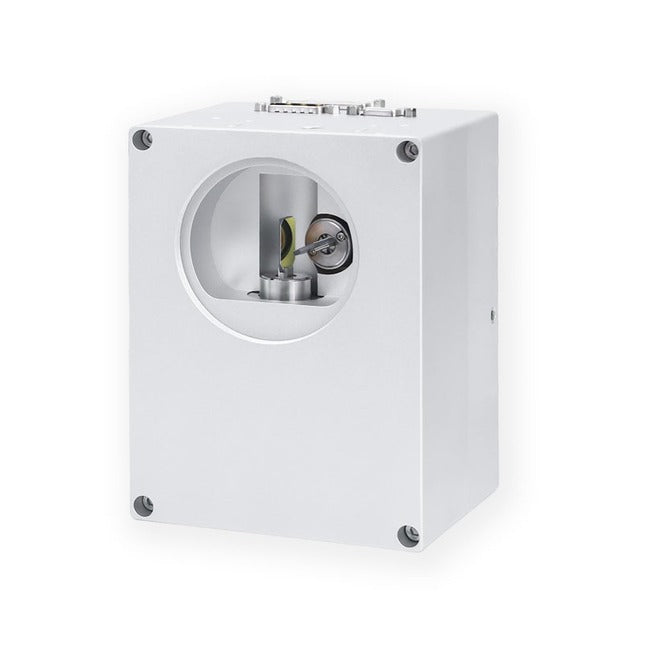

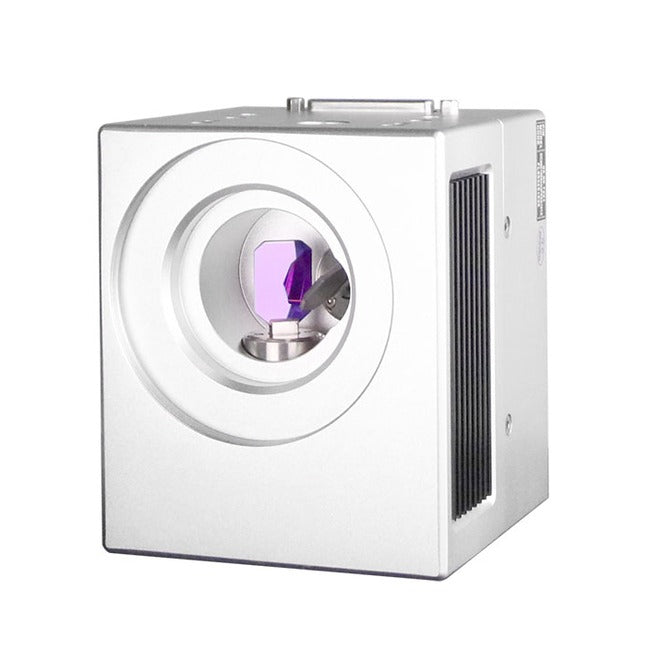

The ExtraScan Head is a fully digital scanning galvanometer built for high precision and low-drift requirements. It covers 10 / 14 / 20 / 30 mm aperture 2D galvanometers with an independently developed high-precision grating encoder and 23-bit position resolution, delivering excellent positioning and repeated-positioning accuracy. A flexible FPGA-based digital drive board can be matched to galvanometers with different loads, and the all-digital design minimises drift and maximises stability. Three series are available: ExtraScan I, ExtraScan II and ExtraScan IV.
Key Features:
- 2D laser scan head with 10/14/20/30mm aperture
- Self-developed high-precision grating encoder. 23bit position resolution digital motor achieves excellent positioning accuracy and repeatability.
- Supports galvanometer position monitoring and position feedback to detect the status of the galvanometer in real time, ensuring safe and reliable operation of the galvanometer
- All digital design ensures minimized drift and maximized stability.
Specifications of ExtraScan Head
| Parameter | Specifications |
|---|---|
| Product | ExtraScan Head |
| Type | Fully digital 2-axis (2D) galvanometer scan head with FPGA drive board |
| Aperture Range | 10 / 14 / 20 / 30 mm |
| Position Resolution | 23 bit (grating encoder) |
| Cooling | Water cooled (5 l/min at △p < 0.1 bar, p < 4 bar) |
| Typical Applications | High precision laser scanning and marking, where low drift and high repeatability are required |
| ExtraScan I | ExtraScan I 10 | ExtraScan I 14 | ExtraScan I 20 | ExtraScan I 30 |
|---|---|---|---|---|
| Input Beam Aperture (mm) | 10 | 14 | 20 | 30 |
| Beam Displacement (mm) | 12.54 | 16.42 | 25.25 | 35.53 |
| Acceleration Time (ms) | 0.30 | 0.40 | 0.65 | 1.20 |
| Tracking Error (ms) | 0.21 | 0.24 | 0.24 | 0.5 |
| Repeatability (µrad) | < 1 | < 1 | < 1 | < 1 |
| Offset Drift (µrad/K) | < 15 | < 15 | < 15 | < 15 |
| Gain Drift (ppm/K) | < 8 | < 8 | < 8 | < 8 |
| Long-term Drift Over 8 Hours (mrad) | < 0.08 | < 0.08 | < 0.08 | < 0.08 |
| 1 % of Full Scale (ms) | 0.45 | 0.60 | 0.85 | 1.30 |
| 10 % of Full Scale (ms) | 1.30 | 1.50 | 2.60 | 4.80 |
| Positioning Speed (m/s) | 12.5 | 10.0 | 5.0 | 3.0 |
| Scan Angle (°) | ±25 | |||
| Gain Error (mrad) | < 5 | |||
| Zero Offset (mrad) | < 5 | |||
| Power Requirements | ±15 VDC, ≥ 3 A | |||
| Communication Protocol | 16bit: XY2-100 20bit: ST2-100 | |||
| Operation Temperature (°C) | 25 ± 10 | |||
| Typical Water Requirements | 5 l/min at △p < 0.1 bar, p < 4 bar | |||
| Weight (kg) | 1.9 | 2.3 | 5.0 | 5.2 |
| ExtraScan II | ExtraScan II 10 | ExtraScan II 14 | ExtraScan II 20 | ExtraScan II 30 |
|---|---|---|---|---|
| Input Beam Aperture (mm) | 10 | 14 | 20 | 30 |
| Beam Displacement (mm) | 12.54 | 16.42 | 25.25 | 35.53 |
| Acceleration Time (ms) | 0.2 | 0.25 | 0.5 | 0.8 |
| Tracking Error (ms) | 0.21 | 0.24 | 0.24 | 0.5 |
| Repeatability (µrad) | < 1 | < 1 | < 1 | < 1 |
| Offset Drift (µrad/K) | < 15 | < 15 | < 15 | < 15 |
| Gain Drift (ppm/K) | < 8 | < 8 | < 8 | < 8 |
| Long-term Drift Over 8 Hours (mrad) | < 0.05 | < 0.05 | < 0.05 | < 0.05 |
| 1 % of Full Scale (ms) | 0.35 | 0.6 | 0.75 | 1.50 |
| 10 % of Full Scale (ms) | 0.75 | 1.0 | 1.2 | 5.0 |
| Positioning Speed (m/s) | 12.0 | 10.0 | 8.0 | 5.0 |
| Scan Angle (°) | ±25 | |||
| Gain Error (mrad) | < 5 | |||
| Zero Offset (mrad) | < 5 | |||
| Power Requirements | ±15 VDC, ≥ 3 A | |||
| Communication Protocol | 16bit: XY2-100 20bit: ST2-100 | |||
| Operation Temperature (°C) | 25 ± 10 | |||
| Typical Water Requirements | 5 l/min at △p < 0.1 bar, p < 4 bar | |||
| Weight (kg) | 1.9 | 2.3 | 5.0 | 5.2 |
| ExtraScan IV | ExtraScan IV 10 | ExtraScan IV 14 | ExtraScan IV 20 | ExtraScan IV 30 |
|---|---|---|---|---|
| Input Beam Aperture (mm) | 10 | 14 | 20 | 30 |
| Beam Displacement (mm) | 12.67 | 16.42 | 24.73 | 35.35 |
| Tracking Error (ms) | 0.14 | 0.16 | 0.20 | 0.45 |
| Repeatability (µrad) | < 1 | < 1 | < 1 | < 1 |
| Offset Drift (µrad/K) | < 12 | < 12 | < 12 | < 12 |
| Gain Drift (ppm/K) | < 8 | < 8 | < 8 | < 8 |
| Long-term Drift Over 8 Hours (mrad) | < 0.04 | < 0.04 | < 0.04 | < 0.04 |
| 1 % of Full Travel (ms) | 0.30 | 0.4 | 0.60 | 1.00 |
| 10 % of Full Travel (ms) | 0.7 | 0.8 | 1.0 | 3.0 |
| Positioning Speed (rad/s) | 200 | 150 | 100 | 50 |
| Typical Scan Angle (°) | ±25 | |||
| Gain Error (mrad) | < 5 | |||
| Zero Offset (mrad) | < 5 | |||
| Nonlinearity (%) | < 0.1 | |||
| Power Requirements | +30 – 48 VDC, ≥ 5 A | |||
| Communication Protocol | XY2-100 / ST2-100 | |||
| Operation Temperature (°C) | 25 ± 10 | |||
| Typical Water Requirements | 5 l/min at △p < 0.1 bar, p < 4 bar | |||
| Weight (kg) | 1.9 | 2.3 | 5.0 | 5.2 |
Data Sheet: ExtraScan Head (PDF)
ExtraScan I, II and IV series, 10 mm to 30 mm apertures. Tell us your laser type and application and we will quote the right scan head.
