FC-W-375H-II 375 nm High Power Fiber Coupling Diode Laser System
$1,000,000.00
Description: The FC-W-375H-II series (Fiber Coupling Laser System) has integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box.
Applications: industrial, medical, biomedical
Model #: FC-W-375H-II
| Model | FC-W-375H-II |
| Wavelength (nm) | 375±5 |
| Operating Mode | CW |
| Output Power (W) @ after 400µm fiber | 10~20 (Higher power can be customized.) |
| Fiber Core Diameter (µm) | 400, 600… |
| Fiber Connector | SMA905 / FC / QBH |
| Numerical Aperture (NA) | 0.22 |
| Power Stability (rms, over 4 hours) | <1% |
| Warm-Up Time (minutes) | <5 |
| Operating Temperature (℃) | 10-40 |
| Input Power | 100-240VAC, 50 to 60 Hz |
| Modulation Option | TTL/Analog 1Hz-30KHz, TTL on/off |
| Cooling Way | Water cooled |

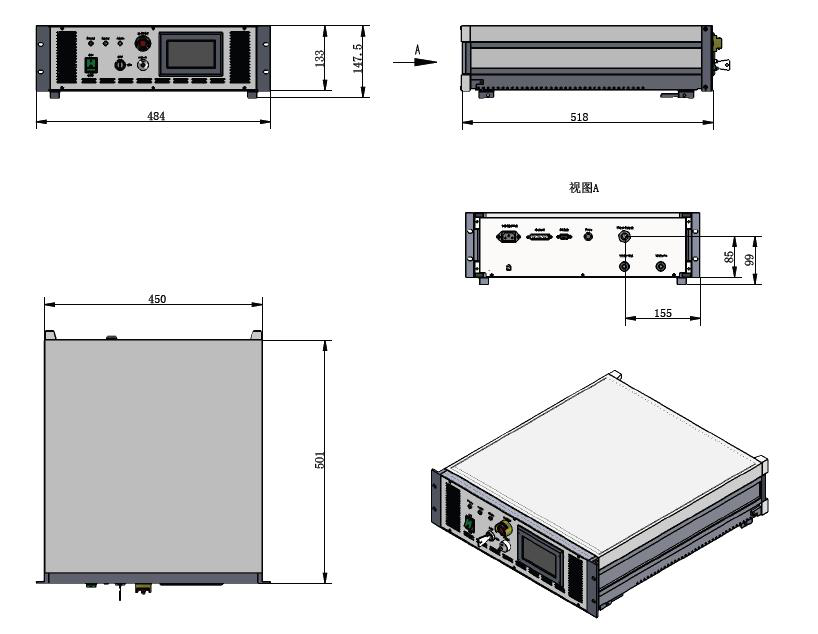

| Dimensions (mm³) | 518(L)×450(W)×147.5(H) |
| Expected Lifetime (hours) | 10000 |
| Warranty | 1 year |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # FC-W-375H-II
Please request a quotation for a real price and lead time.
