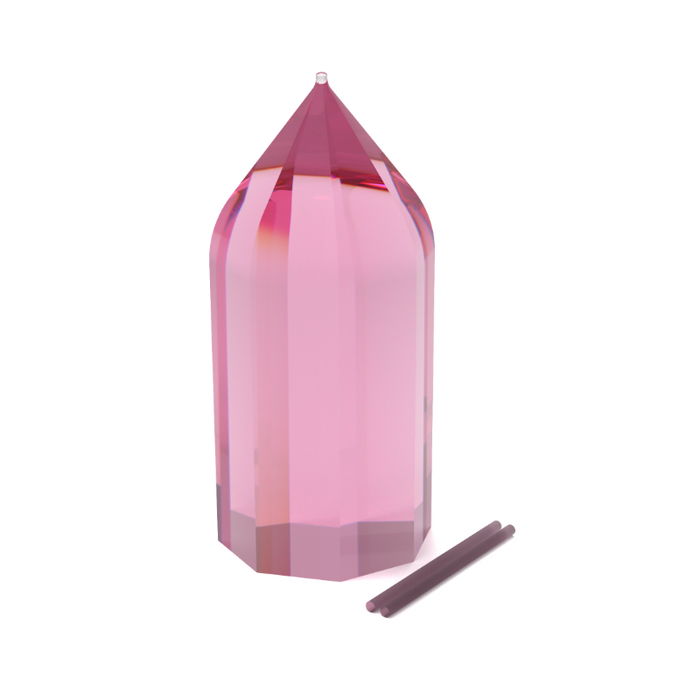

Er:YAG Laser Crystal
Er:YAG Laser Crystal
Er:YAG lases at 2940 nm. This band lies at the hydroxyl absorption peak, where it is strongly absorbed. The crystal offers high slope efficiency, operates well at room temperature, and works in a relatively eye-safe wavelength range.
Key Features
- High slope efficiency
- Operates well at room temperature
- Relatively eye-safe wavelength range
- Lases at 2940 nm, at the hydroxyl absorption peak
Specifications
| Parameter | Specifications |
|---|---|
| Dopant Concentration | Er: ~50 at.% |
| Rod Sizes | Diameter: 3~6 mm, Length: 50~120 mm; Upon request of customer |
| Dimensional Tolerances | Diameter: ±0.1mm Length: ±0.5 mm |
| Surface Quality (Scratch/Dig) | 10/5 to MIL-PRF-13830B |
| Wavefront Distortion | λ/8 @633 nm |
| Flatness | λ/8 @633 nm |
| Parallelism | ≦30 arc sec |
| Perpendicularity | ≦15 arc min |
| Chamfer | ≦0.2 mm×45° |
| Extinction Ratio | ≧25 dB |
| AR Coating Reflectivity | ≦0.2% @2940 nm |
Data Sheet: Er:YAG Laser Crystal (PDF)
Dimensions, doping levels and coatings are made to order - send us your specification for a quotation.
