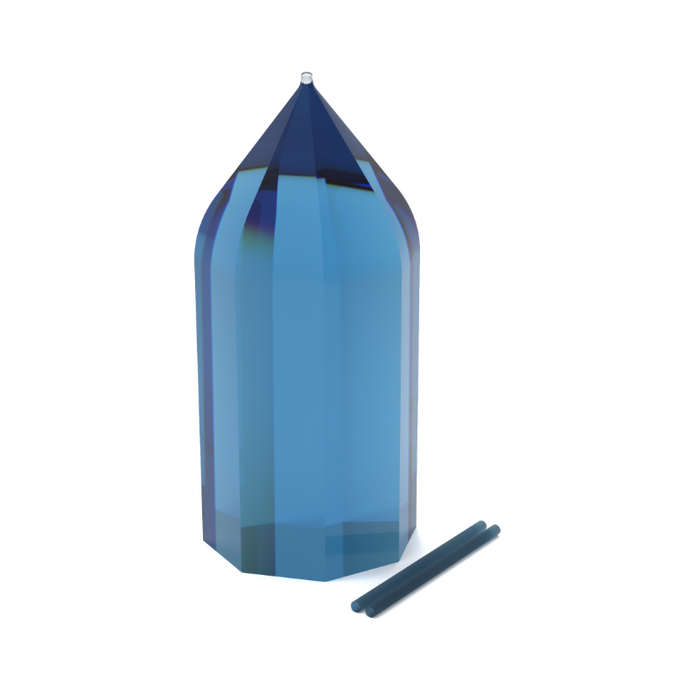

Yb:YAG Laser Crystal
Yb:YAG Laser Crystal
Yb:YAG is one of the most promising laser-active materials and is better suited to diode pumping than the traditional neodymium-doped crystals. It shows very low fractional heating, below 11%, very high slope efficiency, broad absorption bands of about 8 nm at 940 nm, and no excited-state absorption or up-conversion. It is conveniently pumped by reliable InGaAs diodes at 940 nm or 970 nm, and has high thermal conductivity and good mechanical strength.
Key Features
- Very low fractional heating, below 11%
- Very high slope efficiency
- Broad absorption bands, about 8 nm at 940 nm
- No excited-state absorption or up-conversion
- Pumped by InGaAs diodes at 940 nm or 970 nm
- High thermal conductivity and good mechanical strength
- High optical quality
Specifications
| Parameter | Specifications |
|---|---|
| Dopant Concentration | Yb: 5~15 at% |
| Rod Sizes | Diameter: 2~20 mmLength: 5~150 mm Upon request of customer |
| Dimensional Tolerances | Diameter: ±0.1mmLength: ±0.5 mm |
| Surface Quality | 10/5 to MIL-PRF-13830B |
| Wavefront Distortion | < λ/8 @633 nm |
| Flatness | λ/8 @633 nm |
| Parallelism | 20 arc sec |
| Perpendicularity | ≦15 arc min |
| Extinction Ratio | ≧28 dB |
| Barrel Finish | Ground Finish: 400＃Grit |
| Chamfer | ≦0.2 mm × 45° |
| AR Coating Reflectivity | AR-1030/940 nm, R < 0.2% @1030 nm, R < 0.5% @940 nm.Other coatings are available upon request. |
| Single Pass Loss | < 3 × 10-3 cm-1 |
Data Sheet: Yb:YAG Laser Crystal (PDF)
Dimensions, doping levels and coatings are made to order - send us your specification for a quotation.
