AO-K-1202 1202 nm LD Pumped All-Solid-State Q-Switched Laser
Description: All solid state Q-switched laser at 1202 nm with ultra compact design and easy operation.
Applications: micro-electronics, metrology and material processing, laser medical treatment, scientific experiment, etc.
Model #: AO-K-1202
| Wavelength (nm) | 1202±2 |
| Operating Mode | Actively |
| Average Power (mW) | 10-700 |
| Average Power Stability (rms, 4 hours ± 3°C) | <5%, <3% |
| Rep. Rate | 10 kHz |
| Pulse Duration (ns) | <25 |
| Single Pulse Energy (µJ) | 70 |
| Peak Power (kW) | 2.8 |
| Beam Diameter at the Aperture (1/e2, mm) | <3 |
| Beam Divergence, Full Angle (mrad) | <2 |

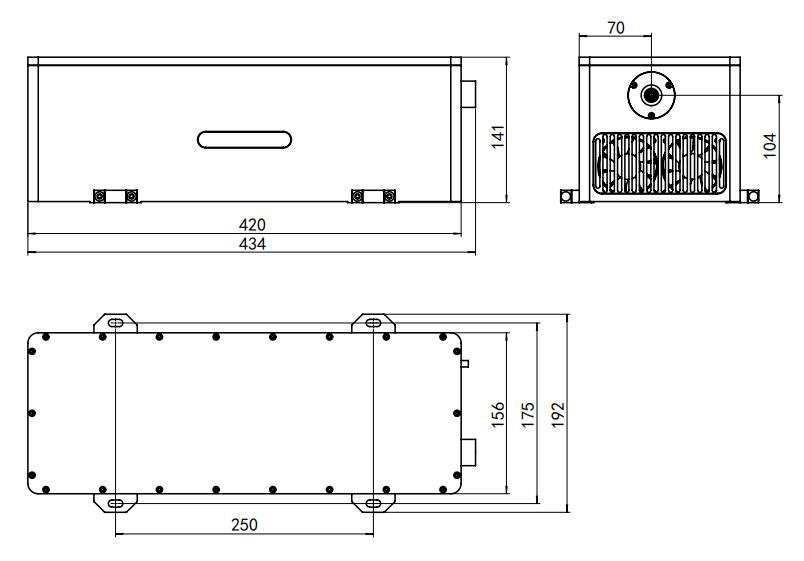

| Beam Height from Base Plate (mm) | 104 |
| Warm-up Time (minutes) | <10 |
| Operating Temperature (℃) | 10-35 |
| Power Supply (100-240 VAC) | PSU-AOM (3U) |
| Expected Lifetime (hours) | >10000 |
Please refer to the Data Sheet for detailed specifications
If you need a different model number, please feel free to ask for a quotation.
- Long lifetime
- FDA registered
- ISO and CE qualified
- ROHS complied
- Model # AO-K-1202
Please request a quotation for a real price and lead time.
