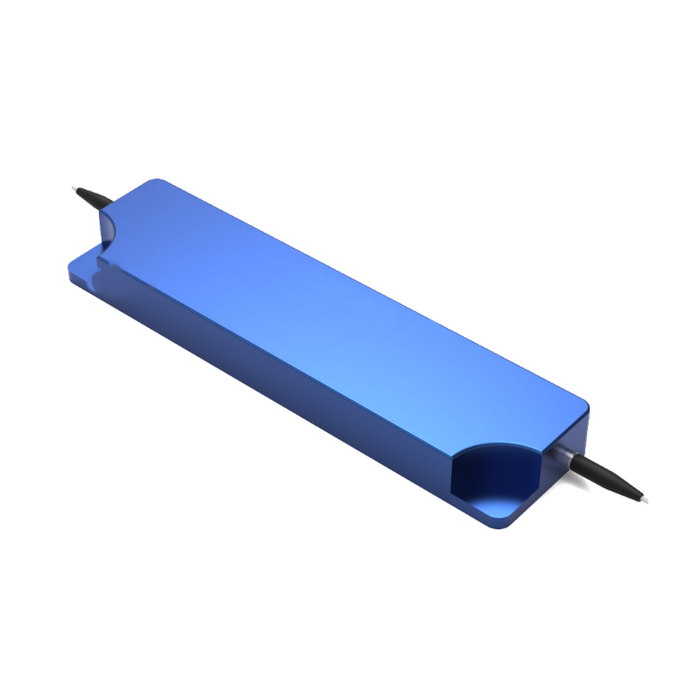

Multi-function Integrated Optic Chip (Y Waveguide Modulator)
Multi-function Integrated Optic Chip (Y Waveguide Modulator)
The multi-function integrated optical chip (MIOC, or Y waveguide modulator) is a key component in a fiber optic gyroscope (FOG) for measuring the angular velocity of an inertial navigation system. Fabricated on lithium niobate (LiNbO3), it combines a polarizer, a Y-junction coupler and dual electro-optical phase modulators. The waveguides are produced by the annealed proton exchange (APE) process. The device is widely used in high-sensitivity inertial navigation systems, with reliable performance over a wide temperature range.
Features
- X-cut, Y propagating LiNbO3
- PM fiber input and output port
- Low Vpi voltage
- Polarization crosstalk <= -30 dB
- Low insertion loss
- Push-pull electrode design
- Unpackaged chip available
- Long term stability
Applications
- Fiber optic gyroscope (FOG)
- Fiber optic current sensor (FOCS)
- Other optical sensing applications
Tell us your wavelength, bandwidth and fiber type and we will quote the right configuration.
