RB/GB/RG Two-Channel Wavelength Combiner
RB/GB/RG Two-Channel Wavelength Combiner

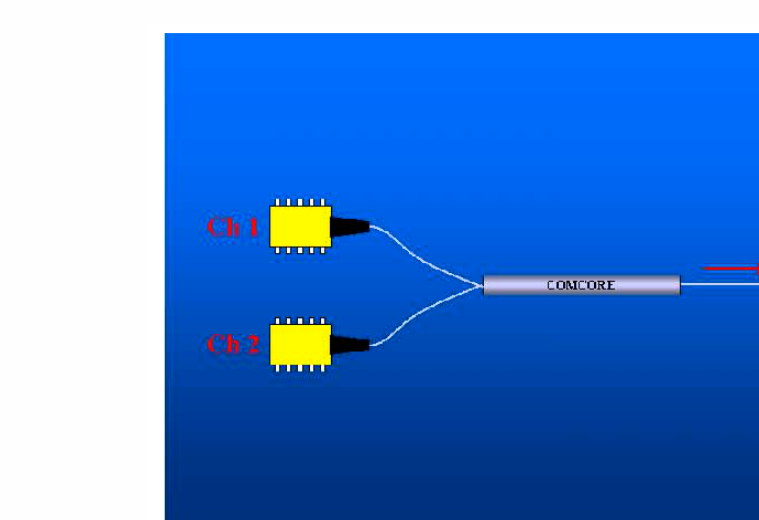

The RB/GB/RG Two-Channel Wavelength Combiner combines two visible wavelengths into one output — RB for 450/640 nm, BG for 450/532 nm and RG for 532/640 nm — using a superfused all-fiber approach. Insertion loss is 0.9 dB maximum with 20 dB minimum isolation, ±5 nm bandwidth and 1000 mW operating power. It is intended for fluorescence microscopy, laser display, VR/AR and optical instruments. HJ Optronics supplies the unit built to order; the datasheet lists the complete specifications, the typical spectrum and the ordering information.
Key Features
- Superfused All Fiber Approach
- Very Low Insertion Loss
- Low Polarization Dependent Loss
- High Power Handling
- Ultra-High Reliability
Applications
- Fluorescence Microscopy
- Laser Display
- VR/AR (Virtual Reality)
- Optical Instrument
Data Sheet: RB/GB/RG Two-Channel Wavelength Combiner (PDF)
Configuration, splitting ratio and packaging are built to order - send us your specification for a quotation.
