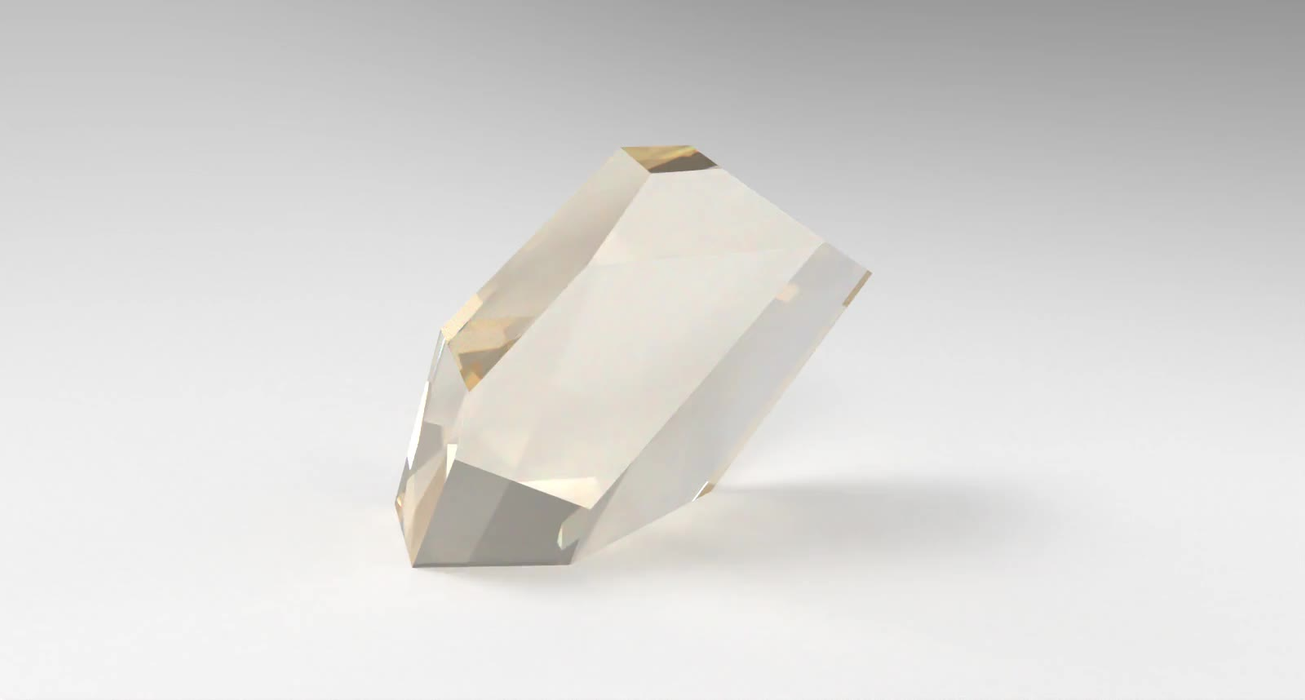

BIBO Nonlinear Crystal
BIBO Nonlinear Crystal
Bismuth Triborate (BiB3O6 or BIBO) is a newly developed nonlinear optical crystal. It possesses large effective nonlinear coefficient, high damage threshold and inertness with respect to moisture. Its nonlinear coefficient is 3.5-4 times higher than that of LBO, 1.5-2 times higher than that of BBO. It is a promising doubling crystal to produce blue laser. The top-seeded solution growth (TSSG) technique is used at HJ Optronics for the growth of BIBO single crystals. Dimension Tolerance(W ± 0.1 mm) × (H ± 0.1 mm) × (L + 0.5/-0.1 mm) (L≧2.5 mm)(W ± 0.1 mm) × (H ± 0. 1 mm ) × (L + 0.1/-0.1 mm) (L＜2.5 mm )Clear ApertureCentral 90% of the diameterSurface Quality (Scratch/Dig)10/5 to MIL-PRF-13830BFlatness≦λ/8 @633 nmTransmitted Wavefront Distortion≦λ/8 @633 nmParallelism20 arc secPerpendicularity≦15 arc minAngle ToleranceΔθ≦0.25 °, ΔФ≦0.25 °Chamfer≦0.2 mm × 45°Chip≦0.1 mmDamage Threshold＞0.3 GW/cm2 @1064 nm, 10 ns, 10 Hz (AR-Coated)Quality Warranty PeriodOne year under proper use.
Key Features and Applications
- Strict quality control
- Large crystal size up to 10 × 10 × 15 mm3
- AR-coating mounts and re-working services
- A large quantity of crystals in stock
- Fast delivery (15 days for polished only, 20 days for AR-coated)
- Dual or triple band AR-coatings of BIBO for SHG and THG applications
- Broad Band AR-coating (BBAR) and P-coating of BIBO for OPO applications
- Low reflectance
Specifications
| Parameter | Specifications |
|---|---|
| Dimension Tolerance | (W ± 0.1 mm) × (H ± 0.1 mm) × (L + 0.5/-0.1 mm) (L≧2.5 mm) |
| Clear Aperture | Central 90% of the diameter |
| Surface Quality (Scratch/Dig) | 10/5 to MIL-PRF-13830B |
| Flatness | ≦λ/8 @633 nm |
| Transmitted Wavefront Distortion | ≦λ/8 @633 nm |
| Parallelism | 20 arc sec |
| Perpendicularity | ≦15 arc min |
| Angle Tolerance | Δθ≦0.25 °, ΔФ≦0.25 ° |
| Chamfer | ≦0.2 mm × 45° |
| Chip | ≦0.1 mm |
| Damage Threshold | ＞0.3 GW/cm2 @1064 nm, 10 ns, 10 Hz (AR-Coated) |
| Quality Warranty Period | One year under proper use. |
Product Video
Data Sheet: BIBO Nonlinear Crystal (PDF)
Dimensions, orientation and coatings are made to order - send us your specification for a quotation.
