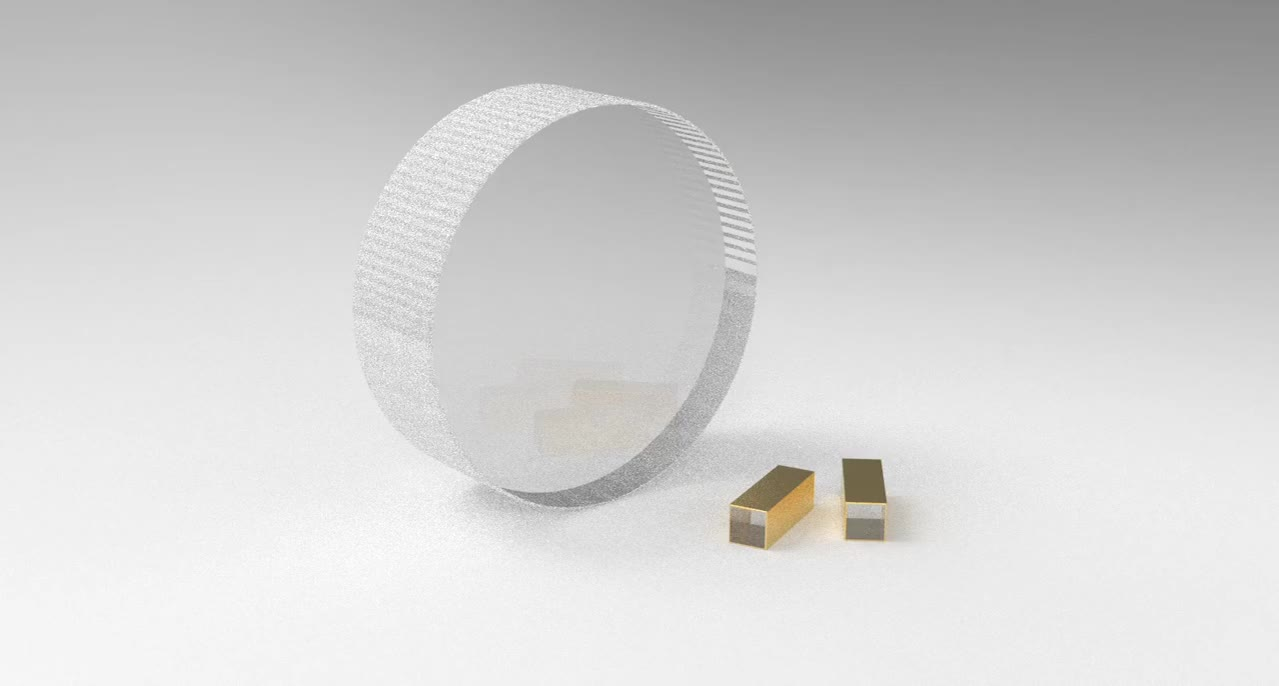

LiNbO3 Nonlinear Crystal
LiNbO3 Nonlinear Crystal
Lithium niobate (LiNbO3) crystals are widely used as doubling of wavelengths above 1000 nm and optical parametric amplification of 1064 nm pump light, and can also be used for quasi-phase matching. At the same time, lithium niobate crystals are also widely used in photoelectric regulators and waveguide materials, and as sapphire laser Q switches of Nd:YAG, Nd:YLF and Ti doping. Our company can provide high quality, large size lithium niobate crystals of various specifications for the above purposes.
Key Features and Applications
- Good physical and mechanical properties
- Wide range of light transmission
- Easy to process
- Relatively low material costs
Specifications
| Parameter | Specifications |
|---|---|
| Flatness | λ/10 |
| Parallelism | ≤20 arcsec |
| Wavefront Distortion | λ/10 |
| Surface Quality | 20-10 |
| Perpendicularity | ≤5 arcmin |
| Orientation tolerance | ≤10 arcmin |
| Dimension tolerance | ±0.1mm |
| Clear Aperture | 90% of central area |
| Chamfer | ≤0.2mmx45° |
Product Video
Data Sheet: LiNbO3 Nonlinear Crystal (PDF)
Dimensions, orientation and coatings are made to order - send us your specification for a quotation.
