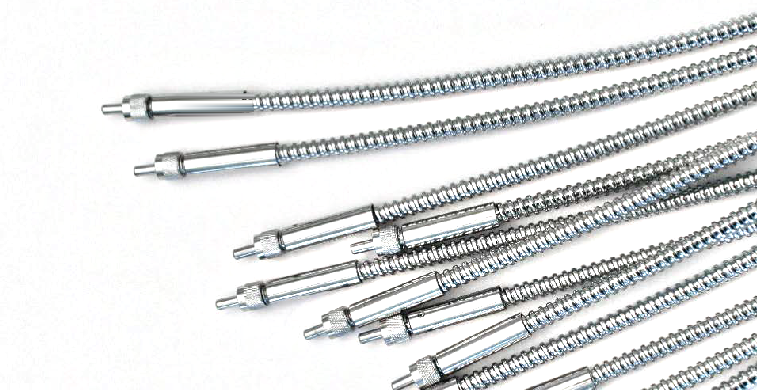

Custom Optical Fiber Device
Custom Optical Fiber Device
We design, customize and produce all kinds of non-standard optical fiber products to meet different customer needs. Our designers take the requirements provided by the customer and incorporate the various options into the design. Not only can different joint specifications and tube protection types be customized, but different optical fibers can also be selected to ensure the required optical performance. We can also supply borate glass fiber, plastic fiber and other products to meet customer budget needs. We have a full range of machining and engraving equipment, which fully meets the flexible needs of fine processing, short-time proofing and batch processing of customized components.
Key Features
- Non-standard fiber assemblies built to your drawing
- Four fiber grades covering 190 nm to 2500 nm
- PVC, stainless steel or composite armoured tube
- Bending-resistant multi-layer armour option
- For spectroscopy and industrial sensing
- Custom connectors, lengths, fiber counts and layouts
Custom Parameters
| Parameter | Options |
|---|---|
| Spectral Range - Visible Glass Fiber | 380 - 800 nm |
| Spectral Range - Ultraviolet Quartz Fiber | 200 - 1100 nm |
| Spectral Range - UV-Resistant Quartz Fiber | 190 - 1100 nm |
| Spectral Range - Near Infrared Quartz Fiber | 360 - 2500 nm |
| Protection Tube - PVC | Soft material, mostly for ordinary spectral measurement |
| Protection Tube - Stainless Steel | For outdoor or corrosive environments |
| Protection Tube - Composite | Multi-layer armour, metal mesh and plastic, bending resistant |
| Fiber Count | Customized |
| Output Type | Round |
| Numerical Aperture | 0.22 |
| Optical Fiber Structure | SMA905, custom |
Data Sheet: Custom Optical Fiber Device (PDF)
Send us a drawing or your requirements and we will quote the assembly.
