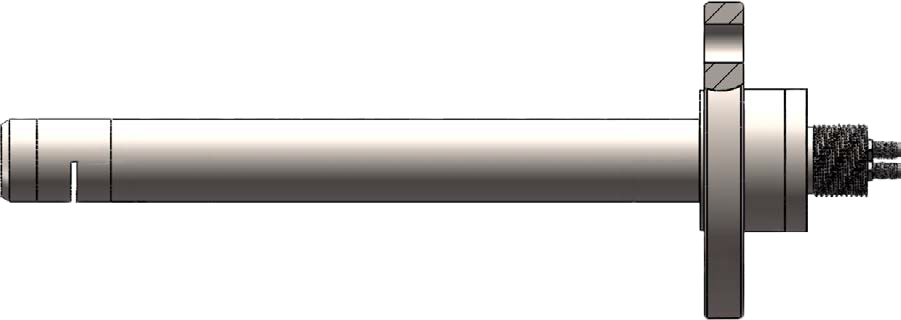

Optical Fiber Probe
Optical Fiber Probe
We design, customise and manufacture optical fiber probes to customer requirements, including reflective probes, transmissive probes and industrial probes. Available materials include stainless steel, Hastelloy, hard plastics and more. Optical path lengths run from 2 mm to 40 mm, with sapphire or fused-quartz lenses and a choice of gold, silver or aluminium coating. Both UV and IR fiber types are supported, in single-core or 7-core construction with an SMA905 connector. Tell us the application and we will quote the probe to suit.
Key Features
- Reflective, transmissive and diffuse-reflective types
- Stainless steel, Hastelloy, PVC or PEEK body
- Optical path length 2 - 40 mm
- Sapphire or fused quartz lens
- Gold, silver or aluminium coating
- SMA905 connector, UV or IR fiber
- Single-core, 7-core or custom fiber count
- Withstands up to 120 °C and 0.5 MPa
Customizable Parameters
| Parameter | Options |
|---|---|
| Type | Transmissive, reflective, diffuse reflective |
| Material | Stainless steel, Hastelloy, PVC, PEEK, custom |
| Optical Path Length | 2 - 40 mm |
| Temperature Resistance | ≤ 120 °C |
| Pressure Resistance | ≤ 0.5 MPa |
| Connector | SMA905 |
| Optical Fiber | UV fiber, IR fiber |
| Number of Fibers | Single-core, 7-core, custom |
| Lens Material | Sapphire, fused quartz |
| Coating | Gold, silver, aluminium, custom |
| Probe Diameter | Custom |
Data Sheet: Optical Fiber Probe (PDF)
Tell us your probe type, path length, fiber type and connector and we will quote it.
