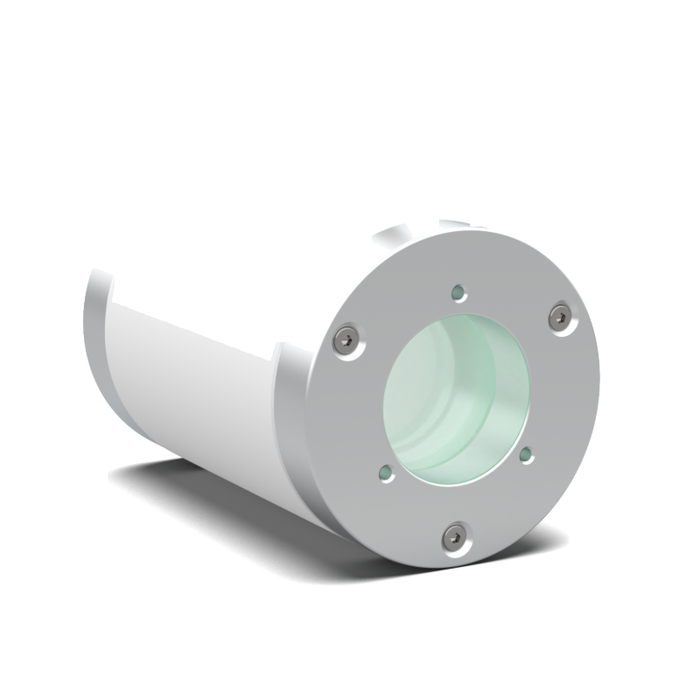

Large aperture DKDP Pockels cells are designed for high power, high energy, large spot applications. The DKDP crystal is a uniaxial crystal with excellent optical quality, giving an extinction ratio of >2000:1 (measured with a 632 nm He-Ne laser) and a transmittance of >98 %. The high damage threshold and low insertion loss make them suitable for large-caliber, high-energy, narrow-pulse Q-switched laser systems.
Features
- Wave front distortion: <λ/4
- Short rise time: ~3 pF
- High transmittance: >98 %
- High damage threshold: >3 GW/cm²
- No static birefringence, no photorefractive damage
- Anti-reflective coated quartz window
- Resistant to ambient temperature shock with excellent electro-optic performance
Specifications
| Parameter | Value |
|---|---|
| Aperture | ≤ 300 mm |
| Clear Aperture | ≥ 90 % |
| Extinction Ratio | 2000:1 |
| Wavefront Distortion | <λ/4 @ 633 nm |
| Optical Damage Threshold | > 3 GW/cm² |
| Insertion Loss | < 3 % |
| Half-Wave Voltage | ~3000 V |
| Capacitance | ~3 pF |
Tell us your aperture, wavelength and repetition rate and we will quote the right configuration.
Data Sheet: Large Aperture DKDP (PDF)
