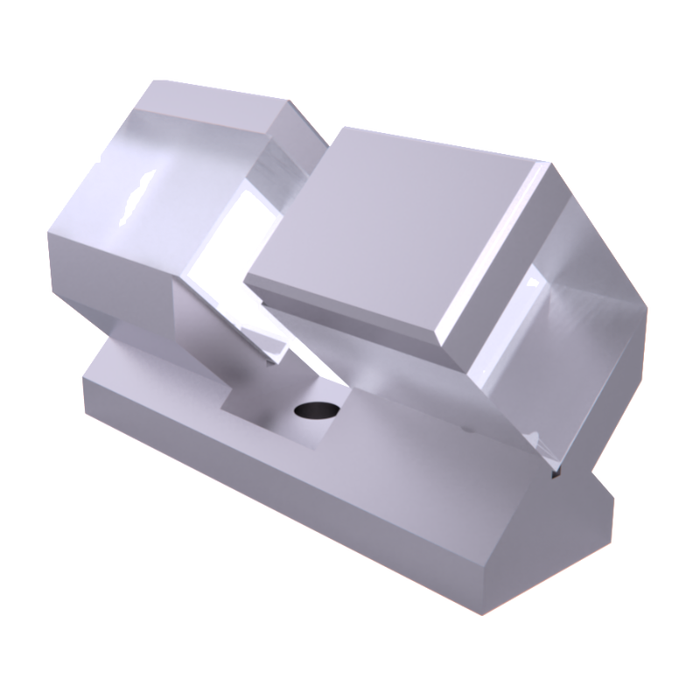

RTP Pockels Cell
RTP Pockels Cell
RTP is an ideal choice for a wide variety of electro-optic applications - Pockels cells, shutters, Q-switches, phase modulators, attenuators and pulse pickers. Its outstanding electro-optical parameters allow extremely fast switching (rise/fall time under 1 ns) and high repetition rates (over 1 MHz) without ringing, over a wide temperature range.
Features
- Low half-wave voltage of EO cells to enable a compact design
- Rise time, fall time and pulse width of 1 ns for fast operation
- Designed to operate over a wide temperature range (-50 °C to 70 °C)
- The best material in the 500 - 3000 nm spectral range for electro-optics
- High laser-induced damage threshold (up to 1000 MW/cm² at 1064 nm, 10 ns pulse)
- Very low absorption losses at 1064 nm
- Extremely high homogeneity: up to 15 × 15 mm EO cells as standard
- Non-hygroscopic, easy handling, no cover needed
- Minimal ringing, compatible with 1 MHz repetition rate
Specifications
| Parameter | Value |
|---|---|
| Operational Range | 500 - 3000 nm |
| Transmission @ 1064 nm | > 99 % |
| Half-Wave Voltage | 3.6 kV (9 × 9 × 10 mm³ EO cell) |
| Extinction Ratio | > 30 dB |
| Clear Aperture | 5 × 5 mm² to 15 × 15 mm² |
| Crystal Length | ≤ 50 mm |
| Acceptance Angle | < 4 deg |
| Standard AR Coating @ 1064 nm | R < 0.2 % |
| Laser Induced Damage Threshold | ≤ 1 GW/cm² @ 1064 nm, 10 ns pulse (or 10 J/cm²) |
Applications
- Q-switches
- Pulse pickers
- Phase modulators
- Fast shutter
- Amplitude modulator
- Electro-optic (EO)
Tell us your aperture, wavelength and repetition rate and we will quote the right configuration.
Data Sheet: RTP (PDF)
