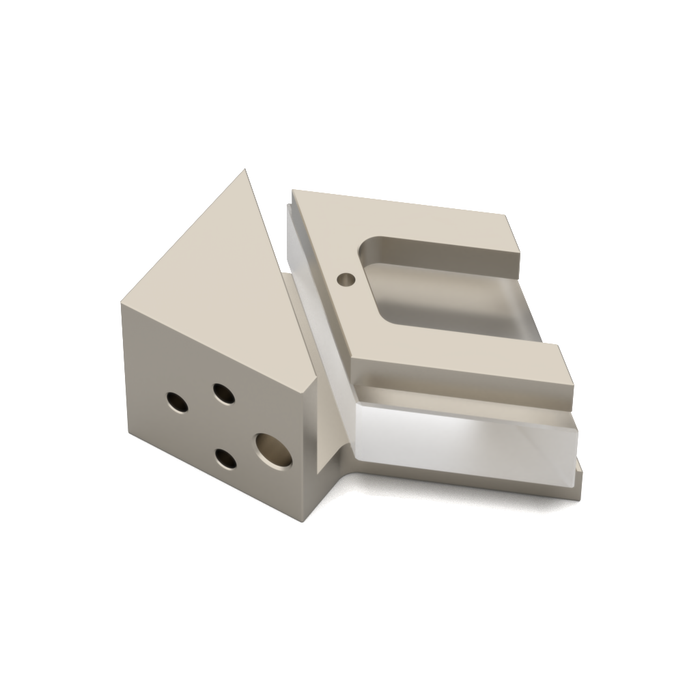

WTR LN Pockels Cell
WTR LN Pockels Cell
The wide temperature range LiNbO3 Pockels cell is based on a lithium niobate (LiNbO3) crystal and is designed as a Q-switch. It holds its electro-optic performance from -50 °C to +71 °C without temperature stabilisation. The N0613HLT electro-optic modulator is intended for lasers with sealed housings.
Features
- Wide operating temperature range, -50 °C to +71 °C
- Designed as a Q-switch for polarised laser systems
- High transmission and extinction ratio at 1.06 µm
- Suitable for sealed laser housings
Specifications
| Parameter | Value |
|---|---|
| Polarization Ellipticity through the Switch Beam | ≥ 100 |
| Transmission Coefficient at 1.06 µm | ≥ 95 % |
| Extinction Ratio at 1.06 µm | ≥ 20 dB |
| Maximum Applied DC Voltage | 5.0 kV |
| Direct / Constant Quarter-Wave Voltage (1.06 µm) | 1.8 ± 0.2 kV |
| Pulse Quarter-Wave Voltage (1.06 µm) | 3.8 ± 0.3 kV |
| Laser Beam Diameter | ≤ 5.0 mm |
| Surface Quality | Not worse than P IV |
| Operating Temperature | -50 °C to +71 °C |
| Storage Temperature | -50 °C to +71 °C |
Tell us your aperture, wavelength and repetition rate and we will quote the right configuration.
Data Sheet: N0613HLT (PDF)
